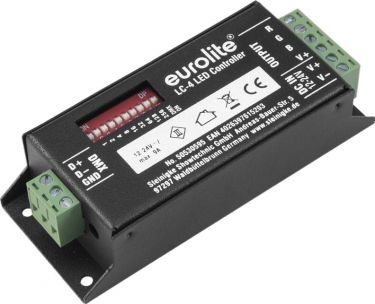

3-channel LED controller with DMX interface for RGB LEDs 12-24 V 3-Kanal-LED-Controller mit DMX-Interface für RGB-LEDs 12-24 V - Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
- Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
- 3 separate control channels for individual color mixing of red, green and blue LEDs
- Plug-in screw terminals for connecting the LEDs and the power supply
- Rugged black metal housing
- Integrated show programs
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
- Silent operation
- 1 x controller, 1 x user manual
| Power supply: | 12/24V DC | | Power consumption: | Max. 108 W 12 V DC Max. 216 W 24 V DC 36 W 12 V DC per channal 72 W 24 V DC per channal | | Protection class: | Protection class III | | Output current: | Max. 3 x 3 A per channal | | Power connection: | Via screw terminal | | Power output: | Screw terminal | | DMX channels: | 4 | | DMX input: | Screw terminal | | Cooling: | Passive convection cooling | | Control: | DMX; stand-alone | | Housing color: | Black matte | | Dimensions: | Width: 4.5 cm Depth: 10.9 cm Height: 2.7 cm | | Weight: | 0.15 kg | | Noise classification: | Class 0 (no noise at all) |
 |
