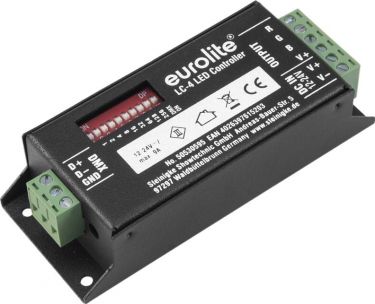

Eurolite LC-4 LED Strip RGB DMX Controller

10A17H61 | 50530595

~~629,00NOK~~ 549,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

3-channel LED controller with DMX interface for RGB LEDs 12-24 V

3-Kanal-LED-Controller mit DMX-Interface für RGB-LEDs 12-24 V

Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
3 separate control channels for individual color mixing of red, green and blue LEDs
Plug-in screw terminals for connecting the LEDs and the power supply
Rugged black metal housing
Integrated show programs
The device is cooled by passive convection cooling
Control via DMX; stand-alone
For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
Silent operation
1 x controller, 1 x user manual

Power supply:	12/24V DC
Power consumption:	Max. 108 W 12 V DC Max. 216 W 24 V DC 36 W 12 V DC per channal 72 W 24 V DC per channal
IP classification:	IP20
Protection class:	Protection class III
Output current:	Max. 3 x 3 A per channal
Power connection:	Via screw terminal
Power output:	Screw terminal
DMX channels:	4
DMX input:	Screw terminal
Cooling:	Passive convection cooling
Control:	DMX; stand-alone
Housing color:	Black matte
Dimensions:	Width: 4.5 cm Depth: 10.9 cm Height: 2.7 cm
Weight:	0.15 kg
Noise classification:	Class 0 (no noise at all)
