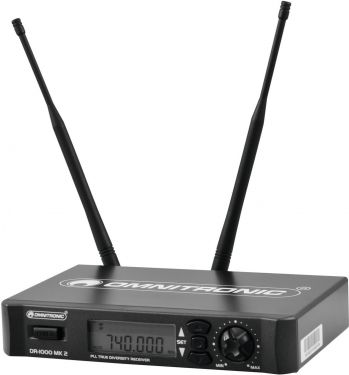

Multifrequency wireless receiver, True Diversity Multifrequenz-Funkempfänger, True Diversity - Multifrequency wireless receiver with UHF pilot tone technology (PLL)
- High-quality true diversity reception
- Operation in the low-interference UHF band
- 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
- System expandable to up to 16 receivers with 16 microphones
- Automatic frequency scan
- Output level control
- Lock function for prevents undesired changes to settings
- Mute mode when signal is absent or too weak
- Rugged metal housing
- Optional antenna boosters and antenna distributor for easy setup of several receivers
- Operating range up to 100m with line-of-sight
- UHF 740 - 764 MHz License-free and approved in large parts of Europe
- Charge status indicator
- Desktop console housing
- (19) 48.3 cm rack installation possible
| Type: | Receiver | | Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 6.00 W | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Number of channels: | 1 | | Frequency range: | 40 - 18000 Hz | | S/N ratio: | >105 dB | | THD: | <0.6 % at 1 kHz | | Range: | Range up to 100m with line-of-sight | | Frequency band: | UHF 740 - 764 MHz | | Diversity: | True diversity | | Switching bandwidth: | 24 MHz | | Frequency stability: | ± 0.0005 % | | Modulation: | FM | | Frequency selection: | 192 switchable frequencies | | Display: | Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency | | Connections: | Output: microphone via 1 x 3-pin XLR Output: microphone via 1 x 6.3 mm jack socket (stereo) mounting version | | Switch: | On/off switch | | Housing design: | Desktop console housing (19") 48.3 cm rack installation possible | | Dimensions: | Width: 21.3 cm Depth: 15 cm Height: 4 cm | | Weight: | 1.33 kg |

|
In stock
