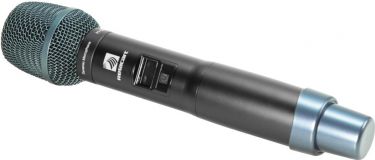

Relacart UH-222D Microphone 823-832 + 863-865 MHz

10A13G82 | 13055206

2.229,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

Hand-held microphone with PLL multifrequency transmitter

Handmikrofon mit PLL-Multifrequenz-Sender

Dynamic hand-held microphone with UHF pilot tone technology (PLL)
Ergonomic aluminum alloy housing, applicable for touring
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Easy and error-free synchronization between receiver and transmitter via infrared signal
RF output power Hi/Low adjustable
Gain level Hi/Mid/Low adjustable
Capsule M-022
Directly compatible with Shure's SM58 capsule
Polar pattern: Super cardoid
Operating range up to 80m
UHF 863 - 865 MHz License-free and approved in Europe
UHF 823 - 832 MHz License-free and approved in large parts of Europe
OLED display
Charge status indicator
1 x microphone, 1 x user manual, 1 x declaration of conformity

Type:	Hand-held transmitter
Power supply:	3 V DC
Capsule type:	Dynamic
Polar pattern:	Super cardoid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	120 - 16000 Hz
Sensitivity:	-53 dB
Max. SPL:	145 dB
Range:	Range up to 80m
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Switching bandwidth:	11 MHz
RF power output:	10 mW
Modulation:	FM
Frequency selection:	90 switchable frequencies In 10 groups with up to 10 preset frequencies each
Display type:	OLED display
Display:	Charge status indicator , frequency , channel
Control elements:	Gain-switch (high-mid-low), transmitter power switch (high-low)
Switch:	On/off/mute switch
Material:	Aluminum
Dimensions:	Length: 26 cm Diameter: Ø 5,4 cm
Weight:	280 g
