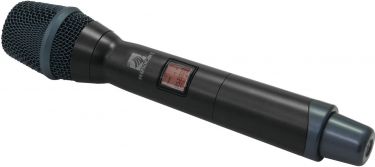

Relacart H-31 Microphone for HR-31S system

10A13G81 | 13055201

4.139,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

Hand-held microphone with PLL multifrequency transmitter

Handmikrofon mit PLL-Multifrequenz-Sender

Dynamic hand-held microphone with UHF pilot tone technology (PLL)
Ergonomic aluminum alloy housing, applicable for touring
731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
Easy and error-free synchronization between receiver and transmitter via infrared signal
RF output power Hi/Low adjustable
Gain level Hi/Mid/Low adjustable
Directly compatible with Shure's SM58 capsule
Polar pattern: Cardioid
Operating range up to 80m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 731 - 790 MHz License-free and approved in large parts of Europe
OLED display
Charge status indicator
1 x microphone, 1 x user manual, 1 x declaration of conformity

Type:	Hand-held transmitter
Power supply:	3V DC
Power connection:	Battery/battery pack
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	100 - 18000 Hz
Max. SPL:	145 dB
Range:	Range up to 80m with line-of-sight
Frequency band:	UHF 823 - 832 MHz; UHF 731 - 790 MHz
Switching bandwidth:	68 MHz
RF power output:	10 mW (LO); 40 mW (HI)
Modulation:	FM
Frequency selection:	292 switchable frequencies In 10 groups with up to 25 preset frequencies each and In 8 groups with up to 7 preset frequencies each
Display type:	OLED display
Display:	Frequency , channel , charge status indicator , Mute
Switch:	On/off/mute switch
Material:	Aluminum
Color:	Black
Dimensions:	Length: 26.5 cm Diameter: Ø 5.4 cm
Weight:	0.29 kg
