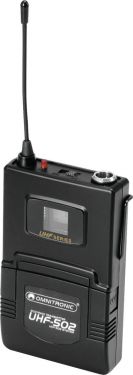

Bodypack transmitter with lavalier microphone Taschensender mit Lavaliermikrofon für Kanal B passend zum Funkmikrofonsystem UHF-502 - Operation in the Duplex Gap 823-832 MHz
- Pilot frequency squelch technology delete wireless RF interference
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Sensitivity adjustable
- LED indicator for battery capacity
- Belt clip
- LCD display
- Charge status indicator
- Powered by a battery/battery pack
- Operating range up to 50m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Polar pattern: Cardioid
- 1 x transmitter, 1 x microphone
| Type: | Bodypack with microphone | | Display type: | LCD display | | Display: | Charge status indicator , channel | | Weight: | 0.14 kg | | Transmitter | | | Type: | Pocket transmitter | | Power connection: | Battery/battery pack | | Battery: | 2 x Mignon (AA) (not included) | | S/N ratio: | >90 dB | | THD: | <1 % at 1 kHz | | Range: | Range up to 50m with line-of-sight | | Frequency band: | UHF 823 - 832 MHz | | Frequency stability: | ± 0.001 % | | RF power output: | 5 mW (LO); 10 mW (HI) | | Modulation: | FM | | Frequency selection: | 100 switchable frequencies | | Output voltage: | 5 V | | Connections: | Input: microphone via mini XLR (M) 3-pin mounting version | | Color code: | CH A= green, CH B= orange, | | Switch: | On/off switch | | Dimensions: | Width: 6.6 cm Depth: 2.2 cm Height: 10.8 cm | | Microphone | | | Type: | Lavalier microphone | | Power supply: | 2-10V DC | | Cable length: | 1 m | | Capsule type: | Electret Size: Ø 5.2 mm x 9.7 mm | | Polar pattern: | Cardioid | | Frequency range: | 50 - 15000 Hz | | S/N ratio: | >63 dB | | Sensitivity: | -47 dB | | Impedance: | 680 Ohm | | Connections: | Output: 1 x Mini XLR (F) 3-pin |
   |
