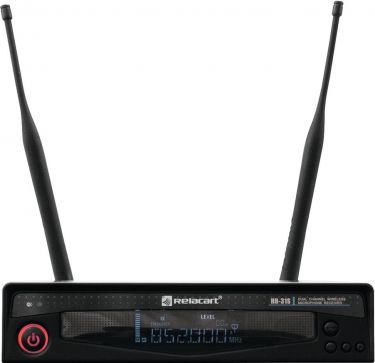

 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Relacart HR-31S 1-channel True Diversity Receiver 10A13G80 | 13055200
Leveringstid: 6 til 10 dager. | |
| |
| | True diversity wireless receiver with PC control True-Diversity-Funkempfänger mit PC-Ansteuerung - Multifrequency wireless receiver with high-quality true diversity reception
- Real-time monitoring and data management using RWW PC software
- 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
- 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
- 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
- Up to 32 units can be linked with network cables
- Lock function for prevents undesired changes to settings
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- (19) 48.3 cm rack installation possible 1 U
- Operating range up to 80m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 731 - 790 MHz License-free and approved in large parts of Europe
- Up to 12 transmitters can be operated in parallel without interference
- Multicolor LCD display
- Charge status indicator
- The device can be connected via RJ14 (F) mounting version to the PC in connection with RELACART RWW software and the dongle (optional)
- Desktop console housing
- 1 x device, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 1 x user manual, 1 x declaration of conformity, 1 x bag, 3 x mounting bracket, 10 x screw
| Type: | Receiver | | Power supply: | 100-240 V AC, 50/60 Hz 12V DC | | Power consumption: | 3.8 W | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Number of channels: | 1 | | Frequency range: | 45 - 18000 Hz | | S/N ratio: | >108 dB | | THD: | <0.6 % at 1 kHz | | Range: | Range up to 80m with line-of-sight | | Frequency band: | UHF 823 - 832 MHz; UHF 731 - 790 MHz | | Diversity: | True diversity | | Switching bandwidth: | 68 MHz | | Frequency stability: | ± 0.005 % | | Parallel mode: | Max. 12 transmitter | | Modulation: | FM | | Frequency selection: | 292 switchable frequencies In 10 groups with up to 25 preset frequencies each and In 8 groups with up to 7 preset frequencies each | | Display type: | Multicolor LCD display | | Display: | Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency , channel , Mute | | Control elements: | Menu, navigation keys, groundlift selector | | Connections: | Antenna via 2 x BNC (F) 8 V Output: line via 1 x 3-pin XLR (M) mounting version Output: line via 1 x 6.3 mm jack socket (stereo) mounting version Link: 2 x RJ14 (F) mounting version | | Switch: | On/off switch | | Material: | Metal | | Color: | Black | | PC connect: | RELACART RWW software with dongle (optional) via RJ14 (F) mounting version | | Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U | | Dimensions: | Width: 20 cm Depth: 26 cm Height: 4.3 cm | | Weight: | 2.05 kg |

 | | |
