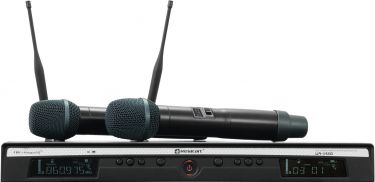

 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Relacart UR-260D 2-channel UHF System 823-832 + 863-865 MHz 10A18F84 | 13055212
Leveringstid: 6 til 10 dager. | |
| |
| | System with DSP for microphone modeling and PC software, 823-832 + 863-865 MHz System mit DSP für Mikrofon-Modeling & PC-Software, 823-832 + 863-865 MHz - 1 x receiver, 2 x antenna, 1 x external mains adapter, 2 x microphone, 1 x jack cable, 1 x mounting bracket, 1 x bag, 1 x user manual, 1 x declaration of conformity
- 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
- Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
- Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
- Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
- DSP programming and management via Ethernet port and intuitively operated PC software
- High-quality antenna diversity reception
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Multiple units can be linked with network cables
- Lock function for prevents undesired changes to settings
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Rugged metal housing
- (19) 48.3 cm rack installation possible 1 U
- Digital signal processor 96kHz, 24 bit
- Operating range up to 80m
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Up to 9 transmitters can be operated in parallel without interference
- Multicolor LCD display
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
- Desktop console housing
- 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 6 x screw, 1 x user manual, 1 x declaration of conformity
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Capsule M-022
- Directly compatible with Shure's SM58 capsule
- Polar pattern: Super cardoid
- Operating range up to 80m
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- OLED display
- Charge status indicator
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Type: | Wireless set | | Weight: | 2.97 kg | | RELACART UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz | | | Type: | Receiver | | Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA | | Power consumption: | Max. 9 W | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Number of channels: | 2 | | Frequency range: | 45 - 18000 Hz | | S/N ratio: | >100 dB | | THD: | <0.5 % at 1 kHz | | Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version | | DSP: | Digital signal processor 96kHz, 24 bit | | Range: | Range up to 80m | | Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz | | Diversity: | Antenna diversity | | Switching bandwidth: | 11 MHz | | Frequency stability: | ± 0.0005 % | | Parallel mode: | Max. 9 transmitter | | Modulation: | FM | | Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each | | Display type: | Multicolor LCD display | | Control elements: | Power switch, groundlift selector, menu, navigation keys | | Connections: | Antenna via 2 x BNC (F) 8 V Output: microphone via 2 x 3-pin XLR (M) mounting version Output: line via 1 x 6.3 mm plug (unbal.) | | Material: | Metal | | Color: | Black | | PC connect: | RELACART Magic EQ software via RJ-45 (F) mounting version | | Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U | | Dimensions: | Width: 41 cm Depth: 26 cm Height: 4.3 cm | | Weight: | 2.40 kg | | RELACART UH-222D Microphone 823-832 + 863-865 MHz | | | Type: | Hand-held transmitter | | Power supply: | 3V DC | | Capsule type: | Dynamic | | Polar pattern: | Super cardoid | | Battery: | 2 x Mignon (AA) (not included) | | Frequency range: | 120 - 16000 Hz | | Sensitivity: | -53 dB | | Max. SPL: | 145 dB | | RF power output: | 5 mW (LO); 10 mW (HI) | | Display type: | OLED display | | Display: | Charge status indicator , frequency , channel | | Control elements: | Gain-switch (high-mid-low), transmitter power switch (high-low) | | Switch: | On/off/mute switch | | Material: | Aluminum | | Dimensions: | Length: 26 cm Diameter: Ø 5.4 cm | | Weight: | 0.28 kg |

| | | | |
