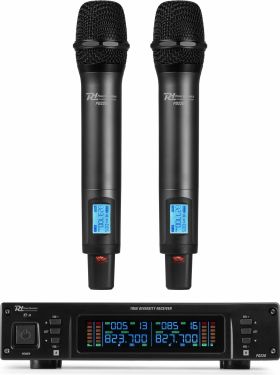

The PD220 is a professional, reliable UHF wireless microphone system with true diversity reception. True diversity design means interference free reception in high radio frequency environments and a built in noise reduction system compensates for high levels of background noise. The receiver can be placed on a surface or built into a rack case in combination with the mounting brackets. Further features include different UHF selectable frequencies, automatic channel detection, IR frequency matching, an intuitive control panel and a large LCD display. The microphone system operates in the 823-832 MHz band and is suitable for stage, presentation, voice and other applications. - 2x 80-channel UHF system
- 2x Handheld microphones with display
- True diversity reception
- Compact half-rack size
- LCD-display on microphones

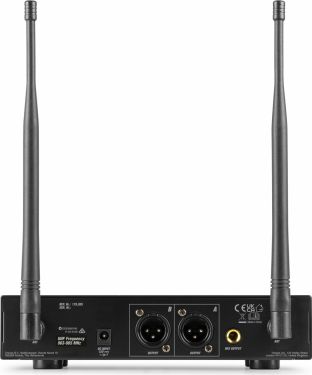

- Two detachable antennas
- Auto Scan function
- Balanced XLR output pro channel
- 6.35 mm Jack for mixed output
- Including case
| Product colour | Black | | Output connections | 6.3mm Jack, XLR (3-pin) | | Microphone channels | 2 x 80 channels | | Dynamic range | >85dB | | Frequency | 823.000 - 832.000 MHz | | Frequency handheld microphone(s) | 823.000 - 832.000 MHz | | Frequency response | 40Hz - 17.000Hz | | Frequency stability | 0.002% | | RF output | <10mW | | Sensitivity | -90dB | | Signal-to-noise ratio | >90dB | | THD | <1% | | Batteries | 3V (2x AA) | | Power supply | 100-240VAC 50/60Hz (12V Adapter) | | Power consumption | 0.055 - 0.028A | | Dimensions: Receiver | 320 x 380 x 95mm | | Dimensions: Microphone | 230 x 50mm | | Weight (kg) | 2,70 | | Weight: Receiver | 0.8 | | Weight: Microphone | 0.4 |
