Omnitronic UHF-304 4-Channel Wireless Mic System 823-832/863-865MHz

10A40L03

6.059,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

4-channel microphone system with UHF PLL technology

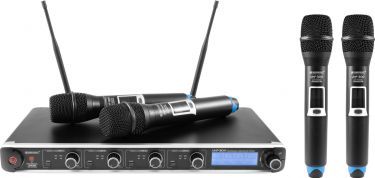

4-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitter via infrared signal
LEDs for carrier and audio signal
4 separate channels with volume controls
Balanced XLR output per channel
Detachable BNC antennas
4 dynamic microphones with cardioid polar pattern and LCD for battery capacity and frequency
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Operating range up to 60m with line-of-sight
LCD display
Desktop console housing
(19) 48.3 cm rack installation possible 1 U
Polar pattern: Cardioid
LCD display
Charge status indicator
1 x receiver, 2 x antenna, 1 x external mains adapter, 4 x microphone, 1 x jack cable, 4 x holder, 2 x mounting bracket, 4 x screw, 1 x user manual, 1 x declaration of conformity

Type:	Wireless set
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:	93 Switchable frequencies
Modulation:	FM; PLL technology
Frequency stability:	±
Range:	Range up to 60m with line-of-sight
Weight:	3,00 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 500 mA
Power consumption:	6 W
Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:	4
Frequency range:	50 - 18,000 Hz
S/N ratio:	>80 dB
THD:	<0,5 % at 1 kHz
Display type:	LCD display
Display:	Chanal , frequency , goup
Control elements:	Power switch, level control, encoder
Status LED:	Power, signal, level meter
Connections:	Input: antenna via 1 x BNC (F) Output: line via 1 x 6.3 mm plug (unbal.) Output: Microphone via 4 x 3-pin XLR
Material:	Metal
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible 1 U
Dimensions:	Width: 41 cm Depth: 23,5 cm Height: 4,7 cm
Microphone
Type:	Hand-held transmitter
Power supply:	3 V DC
Power connection:	Battery/battery pack
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Display:	Frequency , charge status indicator
RF power output:	10 mW
Switch:	On/off switch
Material:	Plastic
Dimensions:	Length: 25 cm Diameter: Ø 5,2 cm
Weight:	230 g
