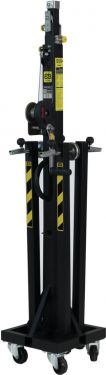

High-quality truss lift for loads up to 160 kg, made in EU - Four-part telescopic ground support
- Safety bolts to lock the different sections at different heights
- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection
- Transport rolls to move the lift when retracted
- AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- Adjustable height
- Made in Europe
- With BGV-C1 test certificate
| Maximum carrying capacity: | 160 kg | | Minimum load: | 25 kg | | Nominal tensile strenght of rope: | 1770 N/mm² | | Height: | Maximum: 530 cm above 4 sections Minimum: 170 cm | | Attachment system: | Ø 35mm | | Steel rope: | Ø 4 mm | | Type (general stands): | Truss lifter | | Material: | Steel (powder-coated) | | Transport dimensions: | 175 cm x 36 cm x 38 cm | | Base area: | Ø 207 cm | | Weight: | 43.50 kg |

|
