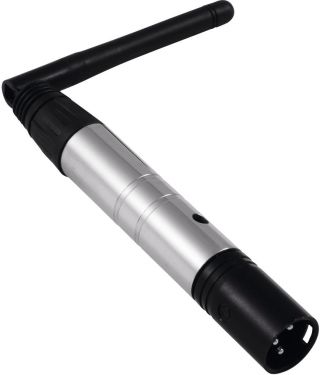

User-friendly 3-pin XLR adapter (male) with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
1 to 512 QuickDMX receivers can be controlled by each transmitter
LED indication for functions
Transceiver, to be used as transmitter or receiver
Can transmit up to 512 DMX channels
Control via QuickDMX; DMX; plug and play
Operating range up to 400m
Up to 6 transmitters can be operated in parallel without interference
1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x USB cable
Power supply:
100-240 V AC, 50/60 Hz 5V DC 1000 mA
IP classification:
IP20
Power connection:
Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided)
