 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | CSBA3L Compact Size Ceiling speaker 3" 8 Ohm 10B03L39
Delivery time: 4-8 workdays. | |
| |

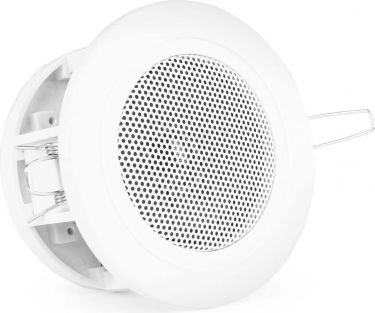

| | The CSBA3L is a ultra-compact low impedance speaker, designed to fit in almost any location especially where space is limited. It only needs a hole 85 mm in diameter for its recessed installation, with fast anchorage to the ceiling by means of an automatic spring mechanism. The CSBA3L is suitable for a wide variety of public address, background audio and sound reinforcement applications and has a 120° conical coverage pattern to provide excellent clarity and intelligibility. - Ultra-compact ceiling speaker
- 8 Ohm operation
- Easy-connect cable connection with screw mounting
- Spring mechanism for easy installation
- Supplied per piece
- Colour: White
| Speaker type | Passive (non-amplified) | | Product colour | White | | Output power: Max | 30W | | Diameter woofer | 3" | | Magnet type | Ferrite | | Impedance | 8 Ohm | | Frequency response | 150Hz - 15.000Hz | | SPL @ 1W/1m | 85dB | | IP rating | N/A | | Mounting diameter | 85mm | | Mounting depth | 73mm | | Dimensions (L x W x H) | 99 x 80mm | | Weight (kg) | 0,40 |
 pdf


   | | | | | | | |
Bundle no.: 10107947 Set consisting of:
8 x CSBA3L Compact Size Ceiling speaker 3" 8 Ohm
1 x Powerline B100W In Wall Audio Amplifier BT/LCD White
8 x RX30 Universal Cable Red & Black 2 x 0.75mm² 10m
|
| |
Bundle no.: 10107927 Set consisting of:
8 x CSBA3L Compact Size Ceiling speaker 3" 8 Ohm
1 x Powerline A100W In-Wall Audio Amplifier BT White
1 x RX26 Speaker Cable 2 x 0.75mm² White 100m Reel
|
| |
Bundle no.: 10107926 Set consisting of:
8 x CSBA3L Compact Size Ceiling speaker 3" 8 Ohm
1 x Powerline B100B In Wall Audio Amplifier BT/LCD Black
8 x RX30 Universal Cable Red & Black 2 x 0.75mm² 10m
|
| |
Bundle no.: 10107915 Set consisting of:
4 x CSBA3L Compact Size Ceiling speaker 3" 8 Ohm
1 x Powerline B50B In Wall Audio Amplifier BT/LCD Black
4 x RX30 Universal Cable Red & Black 2 x 0.75mm² 10m
|
| |
Bundle no.: 10107921 Set consisting of:
8 x CSBA3L Compact Size Ceiling speaker 3" 8 Ohm
1 x Powerline A100B In-Wall Audio Amplifier BT Black
1 x RX26 Speaker Cable 2 x 0.75mm² White 100m Reel
|
| |
Bundle no.: 10107919 Set consisting of:
4 x CSBA3L Compact Size Ceiling speaker 3" 8 Ohm
1 x Powerline A50B In-Wall Audio Amplifier BT Black
4 x RX30 Universal Cable Red & Black 2 x 0.75mm² 10m
|
| |
Bundle no.: 10108000 Set consisting of:
4 x CSBA3L Compact Size Ceiling speaker 3" 8 Ohm
1 x Powerline A50W In-Wall Audio Amplifier BT White
4 x RX30 Universal Cable Red & Black 2 x 0.75mm² 10m
|
| |
Bundle no.: 10107908 Set consisting of:
4 x CSBA3L Compact Size Ceiling speaker 3" 8 Ohm
1 x Powerline B50W In Wall Audio Amplifier BT/LCD White
4 x RX30 Universal Cable Red & Black 2 x 0.75mm² 10m
|
|
| | |
| | |
