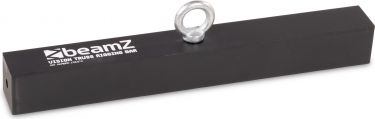

VISION Truss Rigging Bar 500mm

The VISION Rigging Bar 500mm is a dedicated suspension bar designed for the beamZ VISION IP65 LED Panel Series.

Engineered for safe, fast and reliable installation, it provides a secure mounting solution for flown LED wallconfigurations in rental, touring and event environments.
Constructed from high-strength steel, the rigging bar features a 200 kg Working Load Limit (WLL) and a 10:1 safety factor, ensuringdependable performance in professional applications. Integrated alignment magnets help position the rigging bar and panels accurately during assembly, while the quick-lock connection system allowsfor fast and secure attachment of VISION LED panels. Designed to match both VISION panel formats, the rigging bar supports vertical LED wall configurations of up to 18 panels, depending on theinstallation setup and local safety regulations. The robust construction and precision alignment system ensure a stable, perfectly aligned LED wall with minimal installation time.

• Dedicated rigging bar for the VISION IP65 LED Panel Series
• Maximum vertical rigging capacity of 18 panels
• 200 kg Working Load Limit (WLL)
• Safety factor of 10:1
• Integrated alignment magnets for precise positioning
• Quick-lock system for fast and secure panel attachment
• High-strength steel construction
• Suitable for rental, touring and event applications
• Compatible with standard truss systems
• Professional black finish
• Designed for indoor and outdoor use
