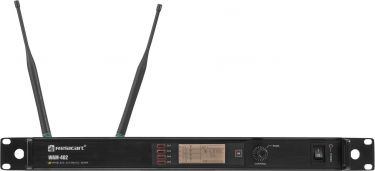

Relacart WAM-402 4CH Digital UHF Automatic Mixer

10A38G56

10.569,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

Digital UHF automatic mixer with DSP for up to 4 microphones

Easy and error-free synchronization between receiver and transmitter via infrared signal
Precise and noise-free microphone selection that automatically adjusts to changes in background room noise
Eliminates acoustic feedback and background noise
Automatic mixing technology activates only those microphones being addressed
Number of open microphones adjustable
Control algorithm adjusts gain automatically
Auto mixing parameters adjustable
2 units can be linked for operation with 8 wireless microphones, link cables included
Last used microphone stays activated (switchable)
Adjustable priority circuit for each microphone
Automatic frequency scan (AFS) finds interference-free channels
Lock function for prevents undesired changes to settings
(19) 48.3 cm rack installation 1 U
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Up to 8 transmitters can be operated in parallel without interference
LCD display
The device can be connected via RS 232 to the PC
1 x receiver, 1 x external mains adapter, 2 x antenna, 2 x BNC cable, 1 x XLR cable, 1 x multipin cable, 1 x network cable, 1 x user manual, 1 x declaration of conformity

Type:	Mixer
Power supply:	100-240 V AC, 50/60 Hz 12V DC 1000 mA
Power consumption:	10 W
Power connection:	Mains input via coaxial power connector (M) mounting version (provided)
Number of channels:	4
Frequency range:	65 - 16000 Hz
S/N ratio:	>100 dB
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Diversity:	True diversity
Switching bandwidth:	11 MHz
Frequency stability:	± 0.001 %
Parallel mode:	Max. 8 transmitter
Modulation:	FM
Frequency selection:	90 switchable frequencies In 10 groups with up to 10 preset frequencies each
Display type:	LCD display
Control elements:	Menu, encoder, navigation keys
Status LED:	Power
Connections:	Antenna via 2 x BNC (F) 8 V Output: line via 1 x 3-pin XLR (M) mounting version 0.3 V Link: for audio/data link via 2 x Mini DIN 4-pin (W) mounting version Link: for audio/data link via 2 x RJ11 (F) mounting version Link: 1 x DB-9 (F) mounting version
Switch:	On/off switch
Material:	Metal
PC connect:	Via RS 232
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48.3 cm Depth: 27.5 cm Height: 4.4 cm
Weight:	3.00 kg
