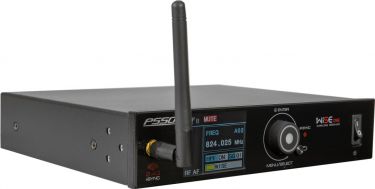

PSSO WISE ONE 1-Channel True Diversity Receiver 823-832/863-865MHz

10A95K83

5.299,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

License-free true diversity wireless receiver with 2.4GHz iSync control management

Professional multifrequency wireless receiver with true diversity reception for stage use
High-grade components and intelligent features ensure best performance and high reliability
Ideal for large multi-channel systems
45 preset channels in 5 channel groups
2.4 GHz iSync - real-time synchronization and monitoring
Automatic frequency setup
Pilot frequency squelch technology delete wireless RF interference
Multifunctional jogdial for menu settings
Lock function for prevents undesired changes to settings
Mic/line selector switch
2 detachable BNC antennas allow for use with external antenna divider
2 receivers can share a single power adapter
(19) 48.3 cm rack installation possible 1 U
Operating range up to 60m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Up to 26 transmitters in 3 bands can be operated in parallel without interference
Multicolor LCD display
Firmware can be updated
Desktop console housing
For application areas such as: Mobile use; stage; theater; rental; sports centres/gyms; concerts/FoH's
1 x receiver, 1 x external mains adapter, 1 x adapter, 3 x antenna, 3 x mounting bracket, 9 x screw, 4 x foot, 1 x jack cable, 1 x adapter cable, 1 x holder, 1 x windshield, 1 x user manual, 1 x declaration of conformity, 2 x battery

Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12-15V DC 800 mA
Power consumption:	4 W
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:	1
Frequency range:	50 - 20000 Hz
S/N ratio:	>96 dB
THD:	<0.1 % at 1 kHz
Gain:	Microphone -32 dB to +4 dB Output: -32 dB to +4 dB
Range:	Range up to 60m with line-of-sight
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Diversity:	True diversity
Parallel mode:	Max. 26 transmitter in 3 bands
Modulation:	FM
Frequency selection:	45 switchable frequencies In 5 groups Frequencies automatically scannable
Display type:	Multicolor LCD display
Control elements:	Power switch, groundlift selector, menu, encoder
Connections:	Antenna via 2 x BNC (F) 12-15 V Antenna via 1 x SMA (F) mounting version Output: mic/line via 1 x 3-pin XLR Output: mic/line via 1 x 6.3 mm jack socket (mono) mounting version
Channels:	Microphone channel: 1 x mono with mic-line switch via XLR or jack
Switch:	Low cut switch
Material:	Metal
Color:	Black
PC connect:	, firmware can be updated
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible 1 U
Dimensions:	Width: 21 cm Depth: 27 cm Height: 4.3 cm
Weight:	1.80 kg
