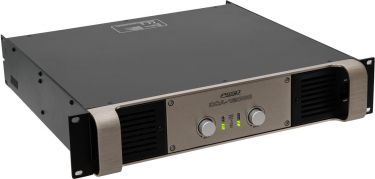

PSSO DCA-12000 2-channel SMPS Amplifier

10B05G14

29.959,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

Class I stereo PA amplifier with SMPS, 2 x max. 6000 W (2 ohms), 2 x max. 3900 W (4 ohms)

Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
Limiter and speaker switch-on delay
3 operating modes can be selected (stereo, parallel or bridged)
Level control per channel
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
(19) 48.3 cm rack installation 2 U
Highly efficient air flow from front to rear
The device is cooled by temperature-controlled fan
Built with NEUTRIK connector
For application areas such as: Stage; concerts/FoH's; rental; mobile djs / entertainer; restaurants, bars and hotels; sports centres/gyms
1 x amplifier, 1 x cover, 4 x foot, 1 x user manual

Power supply:	230 V AC, 50 Hz
Power consumption:	1050 W 1/8 power
Protection class:	Protection class I
Output power:	2 x max. 6000 W (2 ohms) 2 x max. 3900 W (4 ohms) 2 x max. 2300 W (8 ohms) 1 x max. 10000 W bridged (4 ohms) 1 x max. 6200 W bridged (8 ohms)
Power connection:	Fixed power supply cord with safety plug
Cable length:	1,6 m
Frequency range:	20 - 20000 Hz
S/N ratio:	>90 dB
THD:	<0,05 % at 1 kHz
Cooling:	3 x temperature-controlled fan , air flow from front to rear
Impedance:	Input: 10 kOhm , unbal. Input: 20 kOhm , bal.
Gain:	38 dB/ 0,775 V 32 dB/ 1,0 V 26 dB/ 1,4 V
Housing color:	Black
Circuitry:	Class I
Slew rate:	>10 V/µs
Damping factor:	>200
Control elements:	Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch, limiter selector
Controls:	Overheat; overload; short-circuit; softstart; DC voltage; VHF; limiter
Status LED:	Power, level meter, clip, protect
Connections:	Input: line via 2 x 3-pin XLR (F) mounting version Output: line via 2 x 3-pin XLR (M) mounting version Output: speaker via 2 x speaker built-in socket (F)
Input sensitivity:	0,775 V; 1,0 V; 1,4 V , switchable; 26 dB; 32 dB; 38 dB , switchable
Use of brands:	Built with NEUTRIK connector
Material:	Steel
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 44,0 cm Height: 8,9 cm
Weight:	14,20 kg
