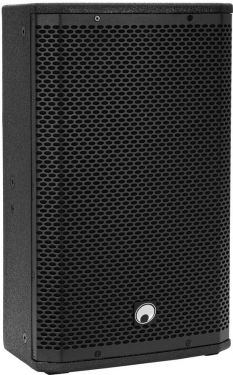

 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Omnitronic PAS-210A MK4 2-way Top, active, DSP, BT 10B06E95
Leveringstid: 6 til 10 dager. | |
| |
| | Active speaker with 10" woofer, 1" driver, 200 W RMS LF, 40 W RMS HF - Active PA speaker system for touring applications and permanent installations
- Optimized for combination with PAS subwoofers
- DSP-controlled biamp amplifier (class D)
- Trapezoidal, multi-functional multiplex cabinet with monitor shape
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- Digital signal processor
- DSP presets: MUSIC; LIVE; CLUB; VOICE
- The device is cooled by passive convection cooling
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
- Dual flange
- With rigging points
- Black metal grille with acoustic foam
- Rugged carrying handle
- 1 x compact cabinet speaker, 1 x user manual, 1 x declaration of conformity
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 350 W | | Power connection: | Mains input via IEC (M) power supply cord with safety plug included | | Device fuse: | 5 x 20 mm, T 2 A fuse replaceable | | Power: | Program: 400W LF Rated: 200W RMS LF Program: 80W HF Rated: 40W RMS HF | | Frequency range: | 70 - 20000 Hz | | Max. SPL: | 119 dB | | DSP: | Digital signal processor | | DSP presets: | MUSIC; LIVE; CLUB; VOICE | | Dispersion angle: | 90° x 60° | | Cooling: | Passive convection cooling | | Low cut: | 100Hz, switchable | | Control: | Bluetooth | | Bluetooth: | With stereo link (TWS) | | Bluetooth device name: | OMNITRONIC PAS-210A MK4 | | Range: | Bluetooth: range up to 10m in buildings | | Attachment system: | Dual flange: | | Flying points: | 12 x M8 thread; 4 x M10 thread | | Circuitry: | Class D Biamp | | Control elements: | Power switch, Master control, level control per channel, Input sensitivity switch, source selector; connect, low cut switch | | Controls: | Limiter; power on/off transients | | Status LED: | Power, signal, peak, low cut, pairing; stereo, DSP presets | | Connections: | Input: Mic-Line-Hi.Z via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR (M) mounting version | | Speaker: | 1 x woofer 10" with ferrit magnet Basket material: steel Conematerial: cardboard/paper Voice coil lows 2" 1 x tweeter 1" with ferrit magnet Voice coil compression tweeter highs 1,35" | | Type of speaker: | Compact cabinet speaker | | Type of construction: | Vented | | Carrying handle: | 1 pc/pcs | | Material: | Plywood multi-layer glued, 12 mm | | Color: | Black | | Dimensions: | Width: 31 cm Depth: 52 cm Height: 28 cm | | Weight: | 13,15 kg |



 | | | | |
