 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Omnitronic MTC-4806 6-Channel Amplifier 10B05D33
 |  På lager
Leveringstid: 2 til 5 dager. |
Leveringstid: 2 til 5 dager. | |
| |

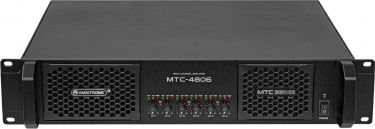

| | Class D multichannal PA amplifier with SMPS, 6 x 800 W RMS (4 ohms), 6 x 400 W RMS (8 ohms) - Extremely low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridge/100V)
- Level control per channel
- (19) 48.3 cm rack installation 2 U
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
- 1 x amplifier, 1 x power cord, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 900 W 1/8 power | | Protection class: | Protection class I | | Output power: | 6 x 800 W RMS (4 ohms)
6 x 400 W RMS (8 ohms)
Bridged (8 ohms)
3 x 1500 W RMS
3 x 1500 W RMS bridged (100 V)
6 x 200 W RMS (100 V) | | Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) | | Cable length: | 1 m detachable | | Device fuse: | 5 x 20 mm, T 10 A Fuse fix on board | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >119 dB | | THD: | <0,05 % at 1 kHz | | Cooling: | 2 x temperature-controlled fan , Air flow from front to rear | | Impedance: | Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. | | Gain: | 28,2 dB | | Housing color: | Black | | Circuitry: | Class D | | Damping factor: | 350 | | Control elements: | Power switch, level control per channel, mode switch (stereo/bridged) | | Controls: | Softstart; overheat; overload; short-circuit; DC voltage | | Status LED: | Power, signal, clip, bridged, protect | | Connections: | Input: line via 6 x 3-pin XLR
Link: line via 6 x 3-pin XLR
Output: speaker via 6 x screw plug-in terminal
Output: 6 x speaker built-in socket (F) | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48,3 cm
Depth: 40,8 cm
Height: 8,8 cm | | Weight: | 8,72 kg |

 | | | | |
