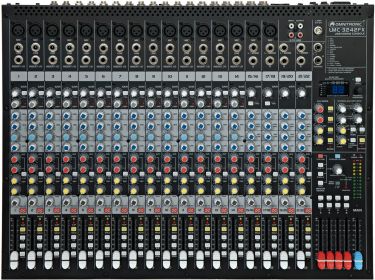

Omnitronic LMC-3242FX USB Mixing Console

10A40K07

10.219,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

PRO audio mixer with British-style EQ, compressor, effect unit and USB interface

14 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
14 inserts for flexible connection of outboard equipment on each mono channel
4 stereo input channels with gain control, 4-way EQ, low cut and balance control
State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
Exceptional British EQs for warm and musical sound
Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
Intelligent feedback detection system makes eliminating feedback frequencies easy
4 AUX sends per channel: 2 pre/post-fader switchable for flexible routing
4 subgroups with separate faders and outputs for added routing flexibility
4 stereo AUX returns with flexible routing
14 direct outputs for recordings
Clip LEDs on all channels
Routing switches for mute, main mix, subgroup and solo/PFL on all channels
2 separate main mix outputs with inserts
2 phones and control room outputs with multi-input source matrix
CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
Precise 12-digit LED level meter
BNC lamp socket
FX mute with remote control via footswitch
+48 V phantom power, can be switched centrally
Digital signal processor 24 bit with 16 effects
Monochrome 2 digit 7-segment LED display
The device can be connected via USB to the PC
For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental
1 x mixer, 1 x power cord, 1 x USB cable, 1 x user manual, 2 x angle

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>110 dB
THD:	<0.05 % at 1 kHz
DSP:	Digital signal processor 24 bit with 16 effects
Phantom power:	Or 48 V DC
Impedance:	Input: microphone 2.6 kOhm , bal. Input: line 10 kOhm , bal. Input: 2-Track 10 kOhm Input: AUX returns 10 kOhm , bal. Insert: 10 kOhm , unbal.
Gain:	Input: variable
Crosstalk:	>89 dB
Display type:	Monochrome 2 digit 7-segment LED display
Control elements:	Encoder, power switch, phantom power switch
Status LED:	Master level meter, clip, gain reduction, Mute, phantom power; power
Connections:	Lamp via 1 x BNC (F) Input: microphone via 16 x 3-pin XLR Input: line via 22 x 6.3 mm jack socket (mono) mounting version Input: 2-Track via 1 x stereo RCA Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version Output: rec. via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 2 x 6.3 mm jack socket (mono) mounting version Output: sub groups via 8 x 6.3 mm jack socket (mono) mounting version Output: direct out via 14 x 6.3 mm jack socket (mono) mounting version Output: AUX sends via 4 x 6.3 mm jack socket (mono) mounting version Output: foot control via 1 x 6.3 mm jack socket (stereo) mounting version Output: control room via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX returns via 8 x 6.3-mm-jack (bal.) Insert: channel via 14 x 6.3 mm jack socket (stereo) mounting version Insert: master via 2 x 6.3 mm jack socket (stereo) mounting version
Channels:	Input chanel: 14 x mono via XLR or jack, channel control via 60mm fader, 3-band EQ-Poti with semiparametric mid-band EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, low cut switch, adjustable single-knob compressor, routing sub group bus switch, routing master bus switch, panoramacontol, mute control, solo switch Input chanel: 2 x stereo via XLR or jack, channel control via 60mm fader, 4-band EQ-poti EQ ±15dB at 80Hz/100-8kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, low cut switch, routing sub group bus switch, routing master bus switch, balancecontrol, mute control, solo switch Input chanel: 2 x stereo via jack, channel control via 60mm fader, 4-band EQ-poti EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, routing sub group bus switch, routing master bus switch, balancecontrol, mute control, solo switch Master output: stereo, channel control via 60mm fader
Crossover frequency:	High-pass 75 Hz, 18db/oct
Max. level:	Output: master +28 dBu, bal. Output: sub groups +22 dBu, unbal. Output: control room +22 dBu, unbal. Output: direct out +22 dBu, unbal. Output: rec. +22 dBu Output: headphones +19 dBu, unbal. Output: AUX sends +22 dBu, unbal.
USB port:	Type B
PC connect:	Via USB
Dimensions:	Width: 59.2 cm Depth: 45 cm Height: 13.7 cm
Weight:	9.30 kg
