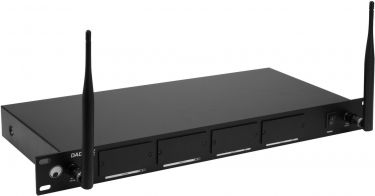

Omnitronic DAD-4RX 4-channel Receiver Housing for MOM/DAD Modules
10A85G61
1.209,00NOK
Prisen er inkl. 25% mva
Leveringstid: 6 til 10 dager.
4-channel housing for wireless modules of the MOM and DAD series
4 insert slots for receiver and transmitter modules of the MOM and DAD series
Supports the WMT/R-2M wireless system
Balanced XLR output per channel
2 AUX inputs (3.5 mm jack) for channel 3 and 4
Rugged metal housing
(19) 48.3 cm rack installation 1 U
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
1 x device, 2 x antenna, 1 x external mains adapter, 8 x screw, 1 x jack cable, 1 x user manual, 1 x declaration of conformity
Type:
Audio transmission
Power supply:
100-240 V AC, 50/60 Hz 12V DC 1000 mA
Power consumption:
Max. 6 W
Power connection:
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:
4
Frequency band:
UHF 823 - 832 MHz; UHF 863 - 865 MHz
Connections:
Input: line via 2 x 3.5 mm jack (stereo) mounting version Output: microphone via 4 x 3-pin XLR (M) mounting version Output: master via 1 x 6.3 mm plug (unbal.) Antenna via 2 x BNC (F)
