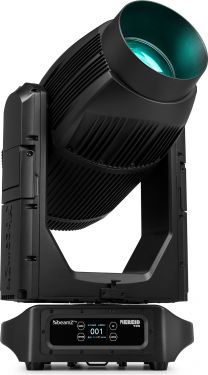

Nereid700 Hybrid Outdoor Framing Moving Head

The Nereid700 Outdoor is a powerful and versatile IP65-rated BSWF moving head, specially designed for outdoor lighting applications.

With a 700W white LED module, it delivers exceptional brightness, making it perfect for concerts, festivals, and architectural lighting.
Thanks to its high CRI and 6.700K colourtemperature, this fixture ensures vivid and accurate colour rendering. The adjustable motorised zoom and endless tilt allows for both precise beams and wide washes, offering flexibility for anyproduction. Dynamic effects such as gobos, water wave, and flame effects create stunning visuals, while the advanced framing system enables precise beam shaping. Built for demanding environments, theNereid features smooth infinity pan and tilt movement, high-speed strobe, and seamless colour mixing. It supports multiple control options, including DMX and RDM, ensuring easy integration into anylighting setup.

• Light Source: 700W white LED module
• Colour Temperature: 6.700K (CRI 69)
• CRI 90 (when using the CRI correction filter)
• Zoom Range: 4° to 50°
• Static Gobo Wheel: 9 gobos plus open, featuring shake and bidirectional rotation
• Rotating Gobo Wheel: 7 indexable gobos plus open, with shake and bidirectional rotation
• 360 degree Animation Effect Wheel
• Framing System: Equipped with 4 cutting blades for precise beam shaping (60 -120 degree rotating)
• Iris Control: Mechanical linear adjustment for beam size modulation
• Prism System: 2 prism wheels with bidirectional rotation, cannot work overlapping (4-face circular prism and 4-face linear prism)
• Colour Wheel: 7 colours plus open, offering half-colour and linear adjustments
• CMY: Independent CMY wheel with linear colour change and macro effect
• CTO Filter: Adjustable colour temperature ranging from 3.000K to 6.700K
• Frost Filters: Two levels (light and medium) for achieving soft wash effects
• Endless Tilt/Pan movement
• Control Modes: Supports DMX512, Master/Slave, Auto, and RDM protocols
• Connectivity: DMX 3-pin and 5-pin in/out; P-Con in/out
• Display: User-friendly LCD interface
• Durability: IP65-rated weatherproof design

Brukerveiledning – Nereid700 Hybrid Outdoor Framing Moving Head
