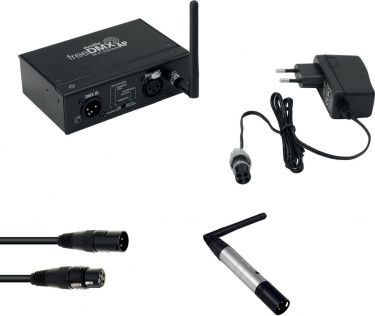

Eurolite Set freeDMX AP Wi-Fi Interface + QuickDMX Funksender + DMX Cable

10A98H57

4.399,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

Wi-Fi DMX interface for wireless lighting control from your tablet or PC
Receives the control signals via the network and transmits them to the DMX line via cable
Works with iOS and Android devices
The apps' online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
Configuration via integrated webserver
Access point and infrastructure mode
1 DMX feed-through output
Mounting kits for racks, desks and truss systems available as an option
Can transmit up to 512 DMX channels
Control via DMX; Light´J app; Wi-Fi; Light Captain App; Art-Net
Operating range up to 60m in the open air
Operating range up to 30m in buildings
2.4 GHz license-free worldwide
Built with NEUTRIK connector
In connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
Made in Germany
For application areas such as: Clubs/dancing school; wedding/gala/events; stage; theater; mobile djs / entertainer
Silent operation
1 x device, 1 x external mains adapter, 4 x foot, 2 x user manual, 1 x antenna, 1 x declaration of conformity
User-friendly 3-pin XLR adapter (male) with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
1 to 512 QuickDMX receivers can be controlled by each transmitter
LED indication for functions
Transceiver, to be used as transmitter or receiver
Can transmit up to 512 DMX channels
Control via QuickDMX; DMX; plug and play
Operating range up to 400m
Up to 6 transmitters can be operated in parallel without interference
1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x USB cable
Adheres to the DMX standard USITT DMX-512/1990/-A
Very flexible cable
Electric cable with good shielding
Robust version
For building DMX controlled lighting systems, LED spotlights etc.

Weight:	0.90 kg
EUROLITE freeDMX AP Wi-Fi Interface
Power supply:	100-240 V AC, 50/60 Hz 12V DC 1000 mA
IP classification:	IP20
Wi-Fi:	Standard: IEEE 802.11 b/g/n
DMX channels:	Output 512
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; Light´J app; Wi-Fi; Light Captain App; Art-Net
Range:	Range up to 60m in the open air Range up to 30m in buildings
Frequency band:	2.4 GHz
Antenna gain:	2 dBi
Status LED:	Signal, pairing, link, channel source
Use of brands:	Built with NEUTRIK connector
Color:	Black
PC connect:	F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
Dimensions:	Width: 13 cm Depth: 11.5 cm Height: 4.1 cm
Weight:	0.64 kg
Noise classification:	Class 0 (no noise at all)
EUROLITE QuickDMX Wireless Transmitter
Power supply:	100-240 V AC, 50/60 Hz 5V DC 1000 mA
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided)
DMX input:	1 x 3-pin XLR (M)
Control:	QuickDMX; DMX; plug and play
Range:	Range up to 400m
Carrier frequency:	2.4 GHz
Parallel mode:	Max. 6 transmitter
RF power output:	19 dBm
Modulation:	GFSK
Color:	Silver
Dimensions:	Length: 21.2 cm Diameter: Ø 1.8 cm
Weight:	0.15 kg
EUROLITE DMX Cable XLR 3-pin 1m bk
Cable length:	1 m
Plug A:	1 x 3-pin XLR (M)
Plug B:	1 x 3-pin XLR (F)
Weight:	0.11 kg
