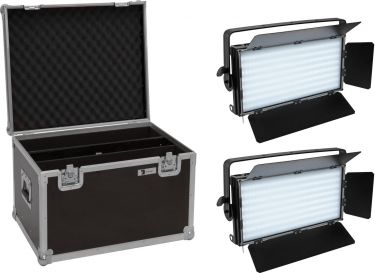

Eurolite Set 2x LED PLL-480 QCL Panel + Case

10B01F50

30.309,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

Frost filter provides a soft, homogeneous light
4 barn doors to avoid blinding the audience and for protection during transport
Slim, rugged metal housing
Stand or truss installation
480 powerful LEDs SMD 5050 4in1 QCL RGBW (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; pulse-width modulation variable
Strobe effect
The device is cooled by passive convection cooling
Control via DMX; stand-alone; master/slave function
Preprogrammed in Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
Flicker-free
With a beam angle of 120°
With mounting bracket
LCD display
Rugged carrying handle
Mains input and output for power linking up to 8 units
Silent operation
For application areas such as: Video and photography; stage; theater; advertisement/Shop window
Application possibility: Suspended; on stand
1 x spotlight, 1 x power cord, 1 x plug (male), 1 x user manual
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Branded hardware

Weight:	37.50 kg
EUROLITE LED PLL-480 QCL Panel
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	205 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	T 6.3 A fuse fix in power supply
Lamp type:	LED lamp
LED type:	480 x SMD 5050 4in1 QCL RGBW (homogenous color mix)
Flash rate:	1 - 19 Hz
DMX channels:	6; 4
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; stand-alone; master/slave function
Preprogrammed in:	Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
Projection:	Flicker-free
Beam angle:	120°
Beam angle (1/2 peak):	120°
Illuminance in Lux (lx):	Red (R) 1m: 438 lx, 3m: 61 lx, 6m: 18 lx Green (G) 1m: 633 lx, 3m: 88 lx, 6m: 25 lx Blue (B) 1m: 209 lx, 3m: 29 lx, 6m: 8 lx Cold white (CW) 1m: 2130 lx, 3m: 296 lx, 6m: 87 lx All 1m: 2696 lx, 3m: 380 lx, 6m: 112 lx
Lamp life:	50000 h
Luminous flux:	17103 lm
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	LCD display
Carrying handle:	1 pc/pcs
Material:	Metal; aluminum casting
Dimensions:	Width: 64 cm Depth: 13 cm Height: 33.5 cm
Weight:	12.60 kg
Noise classification:	Class 0 (no noise at all)
Energy efficiency class (A - G):	F
EPREL-Nr:	1243720
Mounting bracket
Diameter mounting holes:	3 x Ø12mm
Material:	Metal, 3 mm
Barndoor
Material:	Metal, 1.5 mm
ROADINGER Flightcase 2x LED PLL-480
Maximum load:	50 kg
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Inside dimensions:	64 cm x 38.5 cm x 29 cm
Device compartment:	64 cm x 14 cm x 29 cm
Accessory compartment:	64 cm x 10.5 cm x 29 cm
Dimensions:	Length: 70 cm Width: 47 cm Height: 39 cm
Weight:	12.30 kg
