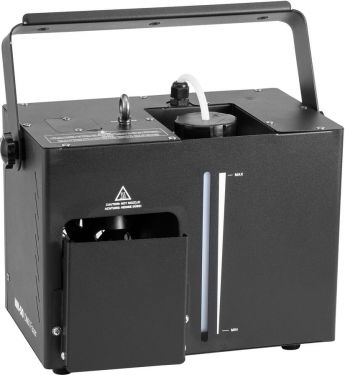

Compact DMX fazer with WirelessDMX port & adjustable output angle
Produces fine, translucent haze without nebulizing the room at the same time
Ideal for accentuating light and laser beams
Vertically adjustable output angle for a perfect fog distribution
Auto temperature control
Short warm-up time
Output distance: Approx. 2,0 m
With level indication
Operates on water-based fluid
Removable, backlit tank
Control via DMX; stand-alone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
With mounting bracket
Monochrome 4 digit 7-segment LED display
For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; mobile djs / entertainer
Application possibility: Standing; suspended
1 x device, 1 x user manual, 1 x container, 1 x filter, 1 x power cord, 1 x mounting bracket, 2 x knurled screw, 2 x washer
Power supply:
230 V AC, 50 Hz
Power consumption:
Approx. 500 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Device fuse:
5 x 20 mm, F 4 A fuse replaceable
Warm-up time:
Approx. 1,5 min
Output volume:
Approx. 170 m³/min
Output distance:
Approx. 2,0 m
Output duration:
- continuous
Tank capacity:
1,3 l water-based fluid removable, backlit tank
Fluid consumption:
Faze mode approx. 5,7 ml/min
DMX channels:
1
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Control:
DMX; stand-alone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Housing color:
Black matte
Attachment system:
Mounting bracket
Operating principle:
Vaporizing fog machine with air compressor
Display type:
1 x monochrome 4 digit 7-segment LED display
Controls:
Overheat
Material:
Metal, painted
Dimensions:
Length: 30 cm Width: 18,5 cm Height: 29,5 cm
Weight:
3,53 kg
Power cord
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
3 x Ø10mm
