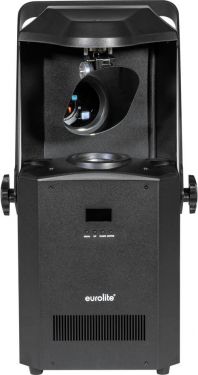

Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus
1 powerful LED 150 W COB (chip-on-board) cold white (CW)
Positioning within 180° PAN, 70° TILT
Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 4-fold rotating
Dimmer electronic
Gobo effect; strobe effect
Color wheel with 8 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
9 integrated show programs
The device is cooled by temperature-controlled fan
Control via stand-alone; sound to light via microphone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light Captain
Flicker-free
With a beam angle of 11°
OLED display
Rubber feet
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; stage; rental
Application possibility: Standing; suspended; on stand
1 x device, 1 x user manual, 1 x power cord, 1 x safety eyelet
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
175 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
1 x P-Con (gray), mounting version
Fuse:
5 x 20 mm, F 5 A fuse replaceable
Lamp type:
LED lamp
LED type:
1 x 150 W COB (chip-on-board) cold white (CW)
Max. TILT movement:
70° positioning
Max. PAN movement:
180°
Flash rate:
0.5 - 21 Hz
Equipment:
Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 4-fold rotating
Color generation:
Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 19.8mm Image diameter 17mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:
13
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
Stand-alone; sound to light via microphone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light Captain
Projection:
Flicker-free
Beam angle:
11°
Beam angle (1/2 peak):
11°
Color temperature:
10000K
Illuminance in Lux (lx):
Cold white (CW) 3m: 15649 lx, 6m: 4147 lx
Housing color:
Black
Display type:
OLED display
Transport aid:
Rubber feet
Dimensions:
Width: 33.5 cm Depth: 16.5 cm Height: 47 cm
Weight:
7.05 kg
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
