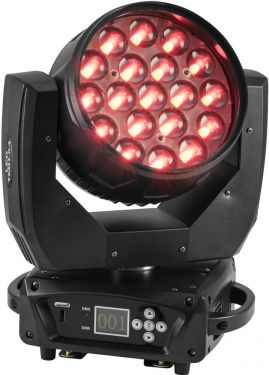

Washlight with 19 x 15 W LEDs, 4in1 QCL RGBW color mixing and motorized zoom
19 powerful LEDs 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) 3 segments controlled separately
Positioning within 540° PAN, 270° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Zoom motor driven
Color blend stepless; color change adjustable; Dimmer electronic
Strobe effect
Integrated show programs
The device is cooled by temperature-controlled fan at the Head; cooling fan at the base
Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
Flicker-free
With a beam angle of 1° - 40°
Multicolor LCD display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer; rental
Application possibility: Standing; suspended
1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
225 W
IP classification:
IP20
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 2 A fuse replaceable
Lamp type:
LED lamp
LED type:
19 x 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:
270° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:
540° exact positioning (16 bit resolution) auto position correction (feedback)
Equipment:
Zoom motor driven
DMX channels:
16; 24
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan at the Head Cooling fan at the base
Control:
Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
Projection:
Flicker-free
Beam angle:
1° - 40°
Beam angle (1/2 peak):
1 - 25°
Beam angle (1/10 peak):
8 - 40°
Illuminance in Lux (lx):
Narrow red (R) 3m: 2779 lx, 6m: 763 lx Narrow green (G) 3m: 7893 lx, 6m: 1841 lx Narrow blue (B) 3m: 1468 lx, 6m: 390 lx Narrow cold white (CW) 3m: 9558 lx, 6m: 2468 lx Narrow all 3m: 19553 lx, 6m: 5001 lx Wide red (R) 3m: 272 lx, 6m: 73 lx Wide green (G) 3m: 583 lx, 6m: 160 lx Wide blue (B) 3m: 117 lx, 6m: 34 lx Wide cold white (CW) 3m: 740 lx, 6m: 211 lx Wide all 3m: 1568 lx, 6m: 439 lx
Housing color:
Black
Display type:
Multicolor LCD display
Dimensions:
Width: 30.5 cm Depth: 20.0 cm Height: 40.0 cm
Weight:
8.62 kg
Noise classification:
Class 3 (clearly perceptible sounds)
Photobiological safety:
Risk Group 0
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
