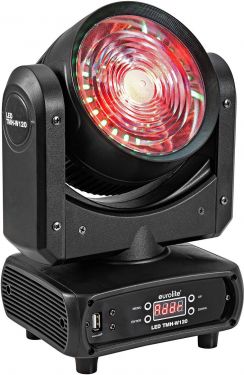

Compact LED moving head wash with 120 W RGB/WW LED and backlighting via RGB hypno LEDs
1 powerful LED 120 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
26 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Positioning within 540° PAN, 200° TILT
Exact positioning (16 bit resolution)
Dimmer; dimmer curves adjustable; color animations with two adjustable colors
Wash effect
The device is cooled by temperature-controlled fan at the Head; low-noise cooling fan at the base
Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
Preprogrammed in Light Captain
Flicker-free
DMX fail mode (hold; zero values)
With a beam angle of 11°
With omega bracket
4 digit 7-segment LED display
4 x rubber feet
Mains input and output for power linking up to 8 units
1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
130 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 2 A fuse replaceable
Lamp type:
LED lamp
LED type:
1 x 120 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix) 26 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Max. TILT movement:
200° exact positioning (16 bit resolution)
Max. PAN movement:
540° exact positioning (16 bit resolution)
Flash rate:
1 - 20 Hz
DMX channels:
23
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
1 x temperature-controlled fan at the Head 1 x low-noise cooling fan at the base
Control:
Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
