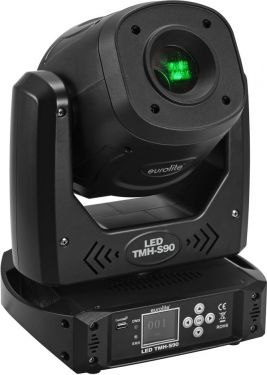

LED moving head spot with color wheel, static and rotating gobo wheel, prism and focus
Rotating 3-facet prism with variable speed
1 powerful LED 90 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN, 200° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Prism 3-fold; gobo wheel with rotating gobos; gobo wheel with static gobos; focus motor-driven; color wheel
Dimmer electronic
Color wheel with 7 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 7 gobos and open shake effect
Gobo wheel with rotating gobos, 5 gobos,1 multi color gobo and open shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
Integrated show programs
The device is cooled by cooling fan
Control via DMX; sound to light via microphone; stand-alone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in EASY SHOW 1; Light Captain; EASY SHOW 3
Flicker-free
With a beam angle of 12°
For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer
Application possibility: Standing; suspended
1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
140 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 2 A
Lamp type:
LED lamp
LED type:
1 x 90 W COB (chip-on-board) cold white (CW)
Max. TILT movement:
200° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:
540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:
1.5 - 15 Hz
Equipment:
Prism 3-fold; gobo wheel with rotating gobos; gobo wheel with static gobos; focus motor-driven; color wheel
Color generation:
Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with static gobos, 7 gobos and open Shake effect Gobo wheel with rotating gobos, 5 gobos,1 multi color gobo and open Outside diameter 21.8mm Image diameter 16mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:
15
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
DMX; sound to light via microphone; stand-alone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
