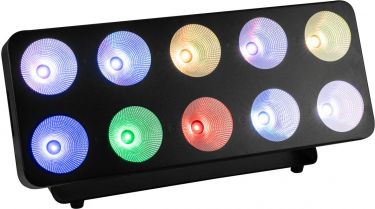

Matrix spotlight with RGB/WW LEDs, pixel control & macros for sequences
Create sensational light effect surfaces by connecting several devices
10 powerful LEDs 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix) LEDs controlled separately
Dimmer electronic; color change; color fade; color animations with two adjustable colors
Blinder effect; matrix effect; strobe effect
9 integrated show programs
The device is cooled by passive convection cooling
Control via stand-alone; DMX; QuickDMX via USB (optional); RDM; Art-Net; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light; master/slave function
Preprogrammed in Light Captain
Flicker-free
DMX fail mode (hold; blackout)
With a beam angle of 45°
With mounting bracket; with bracket for floor use
Multicolor LCD display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer
Very quiet working noise
Application possibility: Standing; suspended; on stand
1 x light effect, 1 x power cord, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
60 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 2 A fuse replaceable
Lamp type:
LED lamp
LED type:
10 x 12 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
Flash rate:
0.4 - 11 Hz
DMX channels:
4; 10; 15; 40; 42
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Network connection:
Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; QuickDMX via USB (optional); RDM; Art-Net; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light; master/slave function
Preprogrammed in:
Light Captain
Projection:
Flicker-free
PWM frequency:
2900 Hz
DMX fail mode:
Hold; blackout
Beam angle:
45°
Beam angle (1/2 peak):
45°
Beam angle (1/10 peak):
82°
Housing color:
Black
Attachment system:
Mounting bracket Bracket for floor use
Display type:
Multicolor LCD display
USB port:
Type A
Diameter mounting holes:
3 x Ø10mm
Material:
Metal
Dimensions:
Width: 45.0 cm Depth: 13.5 cm Height: 20.3 cm
Weight:
5.00 kg
Noise classification:
Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
