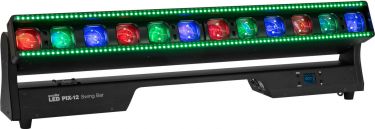

Motorized tiltable LED light effect bar with 12 high-performance LEDs, two zoom ranges from 2° to 28° and 164 effect LEDs
12 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix) LEDs controlled separately
164 powerful LEDs 0.2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Positioning within 180° TILT
Exact 16 bit resolution at Dimmer
Zoom motor driven
Color blend stepless; program speed adjustable; color animations with two adjustable colors; dimmer curves with adjustable response; Dimmer speed (step response) adjustable; pulse-width modulation variable
Beam effect; strobe effect; uplight effect
6 integrated show programs
The device is cooled by cooling fan at the base
Control via stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; RDM
Preprogrammed in Light Captain
Flicker-free
DMX fail mode (hold; blackout; auto)
With a beam angle of 2° - 28°
With a beam angle of 120°
With omega bracket
Monochrome LCD display
4 x rubber feet
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; stage; concerts/FoH's; rental
Application possibility: Standing; suspended
1 x light effect, 1 x user manual, 1 x power cord, 2 x omega bracket
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
310 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:
3 x 1.5 mm² H05VV-F
Cable length:
1.4 m
Power output:
P-Con (gray), mounting version
Device fuse:
5 x 20 mm, T 3 A fuse replaceable
Lamp type:
LED lamp
LED type:
12 x 40 W 4in1 QCL RGBW (homogenous color mix) 164 x 0.2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
Max. TILT movement:
180° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:
1 - 20 Hz
Equipment:
Zoom motor driven
DMX channels:
28; 34; 67
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Network connection:
Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
Cooling:
1 x cooling fan at the base
Control:
Stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; RDM
