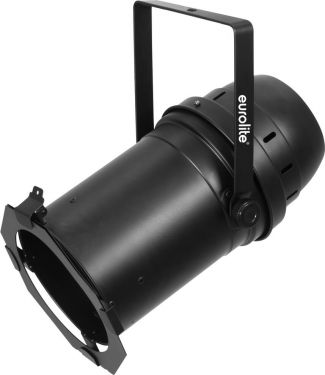

Improved version with more light output than predecessor model
1 powerful LED 120 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
3 integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; sound to light via microphone; master/slave function
Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light´J; Light Captain; Colorchief
Flicker-free
With a beam angle of 11° - 48°
With mounting bracket
Mains input and output for power linking up to 8 units
For application areas such as: Stage; installation; rental; clubs/dancing school
Application possibility: Suspended; on stand
1 x spotlight, 1 x user manual, 1 x power cord, 1 x XLR cable, 1 x filter frame, 1 x mounting bracket, 2 x knurled screw, 2 x washer
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
140 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Fuse:
F 2 A
Lamp type:
LED lamp
LED type:
1 x 120 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
2; 4; 5; 9; 6
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; sound to light via microphone; master/slave function
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light´J; Light Captain; Colorchief
Projection:
Flicker-free
Beam angle:
11° - 48°
Beam angle (1/2 peak):
11 - 35°
Beam angle (1/10 peak):
15 - 48°
Housing color:
Black
Attachment system:
Mounting bracket
Dimensions:
Width: 26 cm Depth: 43.5 cm Height: 37.5 cm
Weight:
3.70 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
