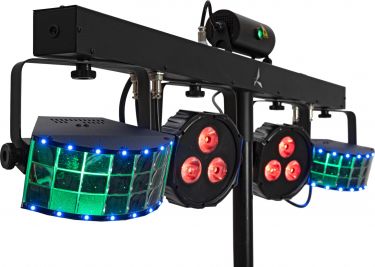

Bar with 2 spots, 2 derbies, show laser, twinkle effect, AirW wireless system (2.4 GHz) and RF remote control
Crossbar with integrated DMX control unit and stand sleeve
Integrated AirW radio transceiver for wireless master/slave operation
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
2 laser diodes project hundreds of red and green laser beams
2 rotating derbies for mirror ball effects
When fog is used, this effect becomes especially attractive
Dimmer electronic; color blend stepless; program selection; color change programs; color fade programs; running light programs; program speed adjustable
Spot effect; laser; multi beam effect; strobe effect
Integrated show programs
Direct color selection
The device is cooled by cooling fan
Control via stand-alone; DMX; AirW; sound to light via microphone; master/slave function; wireless remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wireless footswitch (optional)
Preprogrammed in Light Captain; Colorchief
Flicker-free
AirW: operating range up to 70m
DMX fail mode (blackout; hold; full on; auto)
The article is delivered with practical transport bag
With mounting bracket
Monochrome 4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
For application areas such as: Wedding/gala/events; party room; mobile use; mobile djs / entertainer
Application possibility: Standing; suspended; on stand
Laser class 2M does not require additional protective measures or appointment of a laser safety officer
3 powerful LEDs 8 W high-power 4in1 QCL RGB/WW (homogenous color mix) 2 spots controlled separately
With a beam angle of 12°
4 powerful LEDs 3 W high-power R/G/B/W
14 powerful LEDs 0,2 W SMD 3535 3in1 TCL RGB (homogenous color mix) 2 spots controlled separately
Operating range up to 30m
1 x device, 1 x power cord, 1 x user manual, 1 x declaration of conformity, 1 x remote control, 2 x knurled screw, 2 x mounting bracket, 2 x washer, 1 x bag, 1 x battery
Power supply:
100-240 V AC, 50/60 Hz AC
Power consumption:
65 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction:
3 x 1,0 mm² H05VV-F
Cable length:
3 m
Power output:
1 x P-Con (gray), mounting version Bypass
Device fuse:
5 x 20 mm, T 1,6 A fuse replaceable
Fuse:
T 5 A fuse fix on board
Lamp type:
LED lamp
DMX channels:
3; 8; 11; 24; 27
DMX input:
1 x 3-pin XLR (M) mounting version 1 x USB, type A
DMX output:
1 x 3-pin XLR (F) mounting version Bypass
Cooling:
3 x cooling fan
Control:
Stand-alone; DMX; AirW; sound to light via microphone; master/slave function; wireless remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wireless footswitch (optional)
Preprogrammed in:
Light Captain; Colorchief
Projection:
Flicker-free
Range:
AirW: range up to 70m
Carrier frequency:
2,4 GHz
DMX fail mode:
Blackout; hold; full on; auto
Color temperature:
3100K; 5300K
Housing color:
Black matte
Attachment system:
Tube: Ø 35mm 2x mounting bracket
Display type:
Monochrome 4 digit 7-segment LED display
USB port:
1 x type A
Diameter mounting holes:
2 x Ø6mm
Use of brands:
Built with SEETRONIC connector
Material:
Metal, painted
Dimensions:
Length: 103 cm Depth: 8,2 cm Height: 33,6 cm
Weight:
8,10 kg
Noise classification:
Class 2 (slight noise)
Remote control
Battery:
1 x 12 V 23AE alkaline manganese built-in
Range:
Range up to 30m
Carrier frequency:
433,92 MHz
Laser
Laser class:
2M
Laser color:
R/G
Laser module:
Red (R) 100 mW 650nm Green (G) 30 mW 532nm
Light effect
LED type:
4 x 3 W high-power R/G/B/W 14 x 0,2 W SMD 3535 3in1 TCL RGB (homogenous color mix)
Spotlight
LED type:
3 x 8 W high-power 4in1 QCL RGB/WW (homogenous color mix)
Beam angle:
12°
Beam angle (1/2 peak):
Spot 12° multicolor
Beam angle (1/10 peak):
Spot 30°
