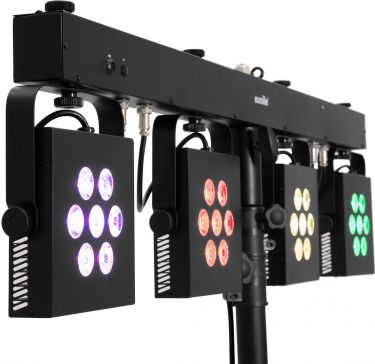

Bar with 4 powerful 6in1 HCL RGBWA/UV spots, QuickDMX support, IR remote control and carrying bag
Crossbar with integrated DMX control unit and TV spigot for tripod installation
Mounting points and power outlets for additional fixtures
7 powerful LEDs 10 W SMD 9090 6in1 HCL RGBWA/UV (homogenous color mix) spots controlled separately
Dimmer electronic; color blend stepless; color selection; program selection
UV effect
20 integrated show programs
Direct color selection for 21 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
With a beam angle of 19°
TV spigot
With omega bracket
Monochrome 4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Mobile use; stage; mobile djs / entertainer; rental
Silent operation
Application possibility: Suspended; on stand
1 x device, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x remote control, 1 x bag, 2 x omega bracket, 4 x knurled screw, 4 x washer, 1 x battery, 1 x terminating plug (power)
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
225 W
IP classification:
IP20
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length:
3 m
Power output:
2 x IEC connector (F) mounting version fused 1 x P-Con (gray), mounting version Bypass
Device fuse:
5 x 20 mm, T 2.5 A fuse replaceable
Power output fuse per channel:
5 x 20 mm, T 5 A fuse replaceable
Lamp type:
LED lamp
LED type:
7 x 10 W SMD 9090 6in1 HCL RGBWA/UV (homogenous color mix)
DMX channels:
2; 4; 6; 10; 24; 28
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
EASY SHOW 1; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Beam angle:
19°
Beam angle (1/2 peak):
19°
Beam angle (1/10 peak):
35°
Housing color:
Black
Attachment system:
TV spigot Ø 28mm Omega bracket
Display type:
Monochrome 4 digit 7-segment LED display
Dimensions:
Width: 128 cm Depth: 8 cm Height: 29 cm
Weight:
11.14 kg
Noise classification:
Class 0 (no noise at all)
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
