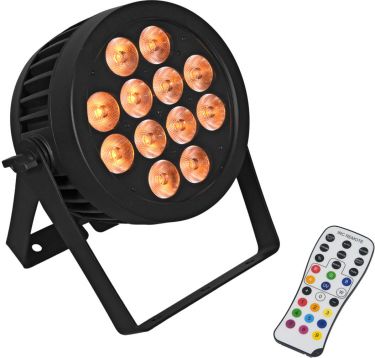

Weather-proof (IP65) spotlight with 12 x 8 W LED and 4in1 QCL RGBW color mixing
12 powerful LEDs 8 W 4in1 QCL RGBW (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
Strobe effect
Direct color selection for 25 preset colors
The device is cooled by passive convection cooling
Control via DMX; IR remote control; stand-alone
Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Flicker-free
With a beam angle of 15°
With double bracket
LCD display
Mains input and output for power linking up to 8 units
Suitable for outdoor use IP65
With pressure compensation membrane
Silent operation
For application areas such as: Installation; stage; rental; architecture
Application possibility: Standing; suspended; on stand
1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
75 W
IP classification:
IP65
Protection class:
Protection class I
Power connection:
Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Power output:
IP T-Con (F) mounting version
Fuse:
T 5 A fuse fix on board
Lamp type:
LED lamp
LED type:
12 x 8 W 4in1 QCL RGBW (homogenous color mix)
Flash rate:
0.5 - 24 Hz
DMX channels:
3; 4; 5; 6; 10
DMX input:
3-pin XLR (M) mounting version IP
DMX output:
3-pin XLR (F) mounting version IP
Cooling:
Passive convection cooling
Control:
DMX; IR remote control; stand-alone
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection:
Flicker-free
PWM frequency:
5900 Hz
Beam angle:
15°
Beam angle (1/2 peak):
15°
Beam angle (1/10 peak):
30°
Housing color:
Black
Attachment system:
Double bracket
Display type:
LCD display
Material:
Aluminum casting
Dimensions:
Width: 28.5 cm Depth: 15.3 cm Height: 31.35 cm
Weight:
5.20 kg
Noise classification:
Class 0 (no noise at all); Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Mounting bracket
Diameter mounting holes:
3 x Ø11mm
Material:
Metal, 2.5 mm
Power cord
Cable construction:
3 x 1.0 mm² H05RN-F
Cable length:
Approx. 1.2 m
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
