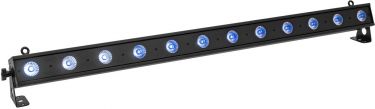

LED light effect bar (1 m) with RGB+WW color mixing
12 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
Strobe effect
3 integrated show programs
Direct color selection for 20 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in EASY SHOW 1; Light´J; EASY SHOW 2; EASY SHOW 3; Colorchief
Flicker-free
With a beam angle of 20°
Variable color temperature 2700 K - 8000 K
With mounting bracket
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer; restaurants, bars and hotels
Silent operation
Application possibility: Suspended
M6 thread
1 x bar, 1 x user manual, 1 x power cord, 2 x mounting bracket, 2 x washer, 2 x knurled screw
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
25 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
1 x IEC connector (F) mounting version
Fuse:
T 1 A fuse replaceable
Lamp type:
LED lamp
LED type:
12 x 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
2; 4; 5; 6; 9
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
EASY SHOW 1; Light´J; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection:
Flicker-free
Beam angle:
20°
Beam angle (1/2 peak):
20°
Beam angle (1/10 peak):
33°
Color temperature:
2700K - 8000K adjustable
Housing color:
Black
Attachment system:
2x mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Length: 106.00 cm Depth: 8.85 cm Height: 10.90 cm
Weight:
2.68 kg
Noise classification:
Class 0 (no noise at all)
Power cord
Cable construction:
3 x 0.75 mm² H05VV-F
Cable length:
Approx. 1.2 m
Mounting bracket
Diameter mounting holes:
1 x Ø20mm; 1 x Ø11mm; 1 x Ø8mm; 2 x Ø7mm
Material:
Metal, 2 mm
Color:
Black, matte
Washer
Diameter mounting holes:
1 x Ø9mm
Material:
Plastic, 3 mm
Color:
Black
Dimensions:
Diameter: Ø 2 cm
Knurled screw
Thread:
M6 thread x 18 mm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
