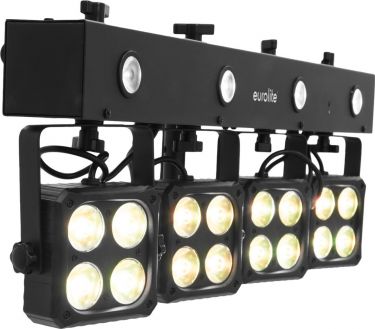

Complete DMX LED lighting system with rechargeable battery pack
Crossbar with integrated DMX control unit and stand sleeve
Movable and tiltable spotlights
Cordless, flexible and versatile
Battery operation up to 20h depending on program used
Integrated automatic charging of the battery and status indicator
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Energy-saving mode
Strobe effect
Integrated show programs
Direct color selection for 20 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; sound to light via microphone; DMX; IR remote control; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief
Flicker-free
With a beam angle of 9°
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
Silent operation
For application areas such as: Band/rehearsal room; mobile djs / entertainer; stage; small rental; mobile use
Application possibility: On stand; suspended
4 powerful LEDs 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix) spots controlled separately
4 powerful LEDs 1 W SMD 8072 cold white (CW) LEDs controlled separately
1 x light effect, 1 x power cord, 1 x remote control, 1 x battery, 1 x bag, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
IP classification:
IP20
Power connection:
Battery/battery pack Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
IEC connector (F) mounting version
Fuse:
T 1 A fuse replaceable
Battery pack type:
1 x lithium ion 22.2 V, 4400 mAh, 97.68 Wh
Battery pack:
Battery operation up to 20h depending on program used Recharging time 5h
Lamp type:
LED lamp
Flash rate:
0.5 - 20 Hz
DMX channels:
3; 4; 8; 21
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; sound to light via microphone; DMX; IR remote control; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief
Projection:
Flicker-free
PWM frequency:
3000 Hz
Beam angle:
9°
Beam angle (1/2 peak):
9°
Housing color:
Black
Display type:
4 digit 7-segment LED display
Material:
Metal; plastic
Dimensions:
Width: 61 cm Depth: 14.5 cm Height: 27.4 cm
Weight:
5.90 kg
Noise classification:
Class 0 (no noise at all)
Spotlight
LED type:
4 x 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
Bar
LED type:
4 x 1 W SMD 8072 cold white (CW)
Mounting bracket
Diameter mounting holes:
3 x Ø11mm; 2 x Ø3mm
Material:
Metal, 2 mm
Power cord
Cable construction:
3 x 0.75 mm² H05VV-F
Cable length:
Approx. 1.2 m
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
