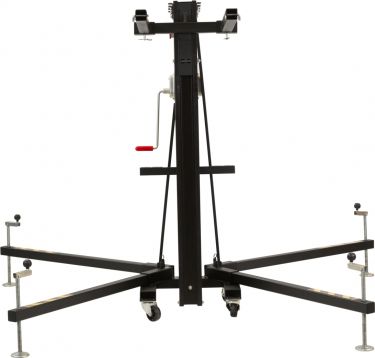

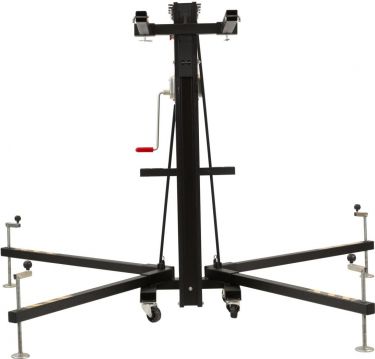

BLOCK AND BLOCK OMEGA-50 Truss lifter 200kg 6.25m

10B00F39

55.439,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

High-quality truss lift for loads up to 200 kg, made in EU

Five-part telescopic ground support
Safety bolts to lock the different sections at different heights
Locking bolts in the base area to lock the booms
Booms with adjustable spindle and steel plate with non-slip rubber base
Corrosion protection through epoxy coating
Water level to ensure a vertical position
Earthing connection
Transport rolls to move the lift when retracted
AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
Adjustable height
With BGV-C1 test certificate

Maximum carrying capacity:	200 kg
Minimum load:	25 kg
Height:	Maximum: 625 cm above 5 sections Minimum: 159 cm
Type (general stands):	Truss lifter
Base area:	220 cm x 170 cm x
Weight:	108.00 kg
