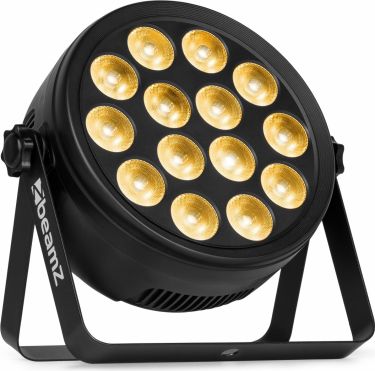

The BCC Flatpar series is a range of compact, powerful LED par fixtures, ideal for creating bright colours and dynamic lighting effects. Thanks to the powerful RGBAW-UV LEDs, these units are perfect for uplighting, stage performances or events. Equipped with multiple control options, including DMX, sound activation and automatic modes, the BCC series offers versatile and professional lighting solutions for any setting.
14x 4W 6-in-1 LEDs
RGBAW-UV Colour mixing
Pre programmed shows
Colour macro’s
DMX and Stand-alone mode
Sound activated with adjustable sensitivity
Auto mode with adjustable speed
Lightweight ABS housing
DMX in/output via 3-pin XLR
Control panel with LED display
Double bracket also acts as floor stand
IEC-connector input/output
Wireless remote control
Product colour
Black
Light source
6-in-1 LED
Colours
Red, Green, Blue, Amber, White, Ultra Violet
LED power (single LED)
4W
Quantity of LEDs
14
Beam angle
25°
Illuminance
4.722 lx @ 1m
Flash rate per second
1 - 35Hz
DMX channels
6, 10
DMX connection
3-pin XLR
Modes
Automatic programs, DMX, Manual
IP rating
IP20
Cooling
Fan
Display
LED
Power plug
IEC
Power consumption
0.690 - 0.372A
Power supply
100-240VAC 50/60Hz
Dimensions (L x W x H)
225 x 230 x 87mm
Weight (kg)
1,15
Included accessories
Remote control (wireless), Mounting bracket, Power cable
