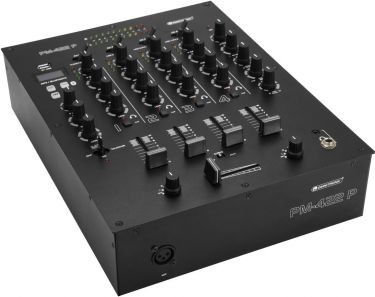

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Omnitronic PM-422P 4-channel DJ Mixer with Bluetooth & USB Player 10A40L01
Delivery time: 4-8 workdays. | |
| |
| | 4-channel DJ mixer with Bluetooth and MP3 player - 4 input channels with gain control, LED level meter, 3-band equalizer, cue button and channel fader
- DJ microphone channel with level control, 2-band equalizer, on/off and talkover switch
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Crossfader with assignment switches and adjustable curve
- Master channel with level and balance control
- 10-digit stereo LED level meter
- Adjustable monitor output
- 10 line and 2 phono inputs via RCA jacks
- Balanced XLR and RCA outputs
- Record output, independent of the master
- Control via Bluetooth
- Operating range up to 10m
- LCD display
- Desktop console housing
- For application areas such as: Party room; mobile djs / entertainer; mobile use
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x RCA cable, 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 6.5 W | | Protection class: | Protection class II | | Power connection: | Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >65 dB | | THD: | <0.1 % at 1 kHz Microphone <1.0 % at 1 kHz | | Housing color: | Black | | Control elements: | Audio player, talkover, crossfader selector switch, crossfader, crossfade curve switch | | Status LED: | Channel level meter, master level meter, CUE, ON AIR, power | | Connections: | Input: line via 6 x stereo RCA Input: line/phono via 2 x stereo RCA Input: microphone via 1 x 6.3 mm jack socket (mono) mounting version Input: audio player via 1 x USB A (F) mounting version Output: master via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: rec. via 1 x stereo RCA Output: booth via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version | | Channels: | Input channel: 1 x stereo with line-line-player switch via RCA or player, channel control via fader, 3-band tone control EQ, gain control, CUE switch Input channel: 1 x stereo with line-line switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch Input channel: 2 x stereo with line-line/phono switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch Microphone channel: 1 x mono via jack, channel control via rotary dial, 2-band tone control EQ, talkover switch, ON AIR switch Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, balancecontrol Booth output: 1 x stereo via RCA, channel control via rotary dial, cue mix function Headphones output: 1 x stereo via jack, channel control via rotary dial | | Housing design: | Desktop console housing | | Dimensions: | Length: 35 cm Width: 26.6 cm Height: 10.5 cm | | Weight: | 3.46 kg | | Audio player | | | Control: | Bluetooth | | Bluetooth: | Version: 4.2 + EDR Profiles: A2DP, AVRCP | | Bluetooth device name: | PM-422P | | Audio player: | USB + Bluetooth | | Carrier frequency: | 2.4 GHz | | Display type: | LCD display | | Display: | Singer , song title , play time remaining , play time elapsed; ID3-Tags | | Music format: | MP3, WMA; WAV | | Available storage media: | USB devices max. 32GB (FAT 32) | | USB port: | Type A |

| | |
| | |
