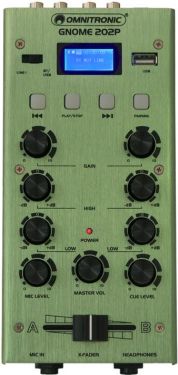

2-channel miniature DJ mixer with Bluetooth and MP3 player
Super portable and lightweight DJ mixer
2 stereo channels with gain control and 2-band EQ, RCA connectors
Adjustable microphone input via 6.3 mm jack
Adjustable headphones output
2 adjustable master outputs via RCA connectors
Anodized metal housing
Monochrome LCD display
Available in various colors
Desktop console housing
For application areas such as: Party room; mobile djs / entertainer; mobile use
Control via Bluetooth
Bluetooth: operating range up to 10m
1 x device, 1 x external mains adapter, 1 x RCA cable, 1 x user manual, 1 x declaration of conformity
Power supply:
230 V AC, 50 Hz 12V 500 mA
Pin configuration:
Inside + / outside -
Power consumption:
6.00 W
Protection class:
Protection class III
Power connection:
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>85 dB
THD:
<0.5 % at 1 kHz
Bluetooth:
Version: 4.1 + EDR Profiles: A2DP
Housing color:
Green
Display type:
Monochrome LCD display
Control elements:
Crossfader
Status LED:
Power
Connections:
Input: line via 2 x stereo RCA Input: microphone via 1 x 6.3 mm plug (unbal.) Input: audio player via 1 x USB A (F) mounting version Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Channels:
Input chanel: 2 x stereo via RCA, channel control via rotary dial, 2-band tone control EQ Input chanel: 1 x mono via jack, channel control via rotary dial Master output: 1 x stereo with line-USB switch via RCA, channel control via rotary dial
