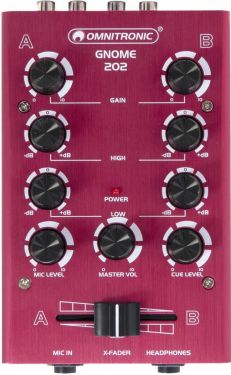

2 stereo channels with gain control and 2-band EQ, RCA connectors
Adjustable microphone input via 6.3 mm jack
Adjustable headphones output
Adjustable master output and record output via RCA connectors
Anodized metal housing
Available in various colors
Desktop console housing
For application areas such as: Party room; mobile djs / entertainer; mobile use
1 x device, 1 x external mains adapter, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz 12V 500 mA
Pin configuration:
Inside + / outside -
Power consumption:
6.00 W
Protection class:
Protection class III
Power connection:
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>85 dB
THD:
<0.5 % at 1 kHz
Housing color:
Red
Control elements:
Crossfader
Status LED:
Power
Connections:
Input: line via 2 x stereo RCA Input: microphone via 1 x 6.3 mm plug (unbal.) Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Channels:
Input channel: 2 x stereo via RCA, channel control via rotary dial, 2-band tone control EQ Microphone channel: 1 x mono via jack, channel control via rotary dial Master output: 1 x stereo via RCA, channel control via rotary dial Headphones output: , channel control via rotary dial
