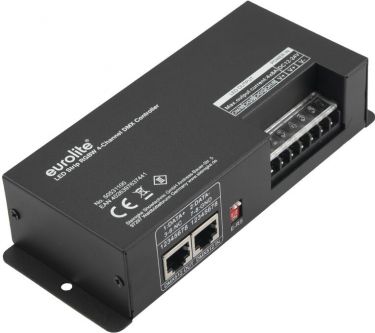

4-channel LED controller with DMX interface for RGB LEDs 12-24 V - Compact LED controller for controlling RGBW LEDs (12-24 V) via DMX
- Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
- 4 separate control channels for individual color mixing of red, green, blue and white LEDs
- Switchable termination resistor
- Plug-in screw terminals for connecting the LEDs and the power supply
- RJ45 jacks for serial connection
- Rugged black metal housing
- Integrated show programs
- Control via stand-alone
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; restaurants, bars and hotels
- Silent operation
- 1 x device, 1 x user manual
| Power supply: | 12/24V DC | | Power consumption: | Max. 384 W 12 V DC Max. 768 W 24 V DC Max. 96 W 12 V DC per channal Max. 192 W 24 V DC per channal | | Output current: | Max. 4 x 8 A per channal | | Power connection: | Via screw terminal | | Power output: | Screw terminal | | DMX channels: | 4 | | DMX input: | 3-pin XLR (M) mounting version 1 x RJ-45 (F) mounting version | | DMX output: | 3-pin XLR (F) mounting version RJ-45 (F) mounting version | | Control: | Stand-alone | | Dimensions: | Length: 16.4 cm Width: 6.6 cm Height: 3.8 cm | | Weight: | 0.30 kg | | Noise classification: | Class 0 (no noise at all) |
   |
