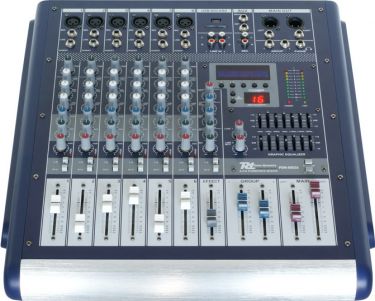

A 6 channel live mixer with built-in amplifier and DSP effect processor for bands, studio and stage applications. Each channel has a 3-band equalizer while output channels have a 7-band graphic
equalizer for a colourful sound. With MP3, phantom supply, Send/return function etc. - 2x 150W RMS amplifier
- USB port & SD slot
- DSP effect processor
- Send / Return application
- 3-Band equalizer per channel
- Effect- and PAN control
- 7-Band graphic Master-equalizer
- Phantom power
- Display for MP3 and DSP
- Record output
- XLR- and Jack (6.35mm) inputs
- 2x RCA line in
- Jack (6,3mm) and NL4 speaker connector outputs
| Output power: 4 Ohms | 2x150Wrms | | Frequency response | 50Hz~18kHz | | THD | <0.1% | | Signal to noise ratio | >102dB | | Equalizer | +/-15dB/ch | | Input:Line | 150mV | | Input:Mic | 1.5mV | | Output level | 1V | | Connector | XLR/Jack/RCA | | Power supply | 220-240Vac/50Hz | | Dimensions | 535 x 470 x 145mm | | Weight | 13.1kg |

 |
