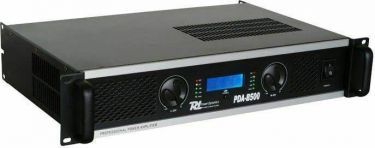

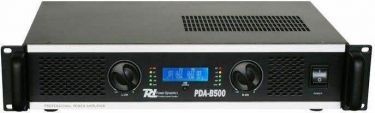

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | PDA-B500 Professional Amplifier 10A84D42
Delivery time: 4-8 workdays. | |
| |
| | Amplifiers for professional use fitted with strong front panels. With integrated 2-way crossover network (only models PDA-B1500, PDA-B2000 & PDA-B2500) and limiter. Very versatile due to high power reserves and silent cooling fans. A robust construction suitable for heavy duty usage: DJ's, fixed installations and live performance. - Blue LCD display for temperature, operating mode, power, protection and audio level
- Signal, overload and bridge LED indicator on each channel
- Automatic clip limiting and Ground lift function
- Soft-start function
- Innovative heatsink with temperature-controlled fans
- Adjustable crossover network: 45-960 Hz / 450-9600 Hz (only PDA-B1500,PDA-B2000,PDA-B2500)
- Switchable high-pass and low-pass filter
- Suitable for 19 rack mounting (2U)
- Protected against short circuits, overload and heat
- Stereo, parallel and bridge mode
- High power output and excellent sound quality
| Product colour | Black | | Output channels | 2 | | Output power: RMS @ 4 Ohm per channel | 250W | | Output power: RMS @ 8 Ohm per channel | 150W | | Output power: RMS @ 8 Ohm bridged | 500W | | Input connections | 6.3mm Jack, XLR (3-pin) | | Output connections | NL-4 | | Frequency response | 10Hz - 50.000Hz | | Crosstalk | >70dB | | Signal-to-noise ratio | >90dB | | Damping Factor | >350 | | Slew rate | 40V/uS | | Input sensitivity line | 775mV - 1.2V | | Input impedance | 20 kOhm | | Power supply | 220-240VAC 50Hz | | Dimensions (L x W x H) | 482 x 88 x 330mm (19" x2U) | | Is the item 19"? | Yes | | Weight (kg) | 8,30 |
 Manual – PDA-B500 Professional Amplifier

 | | | | |
Bundle no.: 10107266 Set consisting of:
4 x PDCS403 Column Speaker White
1 x PDA-B500 Professional Amplifier
1 x RX28 Speaker Cable 2 x 1.5mm² White 100m Reel
|
| |
Bundle no.: 10107323 Set consisting of:
2 x PDY210 Passive Speaker 10” 400W
1 x PDA-B500 Professional Amplifier
2 x CX26-10 Speaker cable NL2 2,5mm2 10m
|
| |
Bundle no.: 10004639 Set consisting of:
1 x PDA-B500 Professional Amplifier
2 x PD410P Passive Speaker 10" 800W
2 x CX25-5 Speakercable NL2-NL2 1,5mm2 5.0m
|
| |
Bundle no.: 10107167 Set consisting of:
4 x PDCS403 Column Speaker Black
1 x PDA-B500 Professional Amplifier
1 x RX22 Red&Black Cable 2 x 1.5mm² 100M reel
|
| |
Bundle no.: 10004606 Set consisting of:
1 x PDA-B500 Professional Amplifier
2 x PD412P Passive Speaker 12" 1200W
2 x CX26-5 Speaker cable NL2 2,5mm2 5m
|
|
| | |
