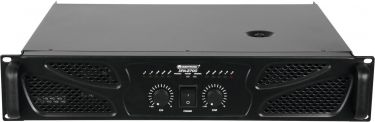

Class H PA amplifier with limiter, 2 x 1350 W RMS (4 ohms), 2 x 1080 W RMS (8 ohms)
Stereo-PA-Verstärker mit Limiter, 2 x 1350 W / 4 Ohm, 2 x 1080 W / 8 Ohm
3 operating modes can be selected (stereo, parallel or bridged)
Input sensitivity adjustable
2 level controls
Each channel with LED for activated protective circuit (protect) and output meter with clip LED
Signal inputs via XLR or RCA connectors
Speaker outputs via lockable speaker jacks and pairs of screw terminals
Class H circuitry
(19) 48.3 cm rack installation 2 U
The device is cooled by cooling fan
For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
1 x amplifier, 1 x user manual, 1 x power cord, 4 x foot, 4 x screw
Power supply:
230 V AC, 50 Hz
Power consumption:
700 W 1/8 power
Output power:
2 x 1350 W RMS (4 ohms) 2 x 1080 W RMS (8 ohms) 2700 W RMS bridged (8 ohms)
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>100 dB
THD:
<0.5 % at 1 kHz
Cooling:
Cooling fan
Impedance:
Input: 20 kOhm , bal. Input: 10 kOhm , unbal.
Circuitry:
Class H
Slew rate:
>10 V/µs
Damping factor:
>200
Control elements:
Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
Controls:
Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient
Status LED:
Power, level meter, clip, bridged, protect
Connections:
Input: line via 2 x 3-pin XLR Input: line via 1 x stereo RCA Output: speaker via 2 x speaker built-in socket (F) Output: speaker via screw terminal
In stock
