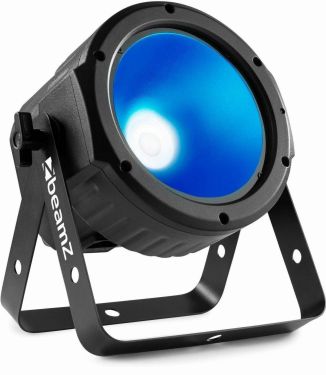

The COB30RGB is a flat PAR equipped with a high power 30W COB (chip-on-board) LED and creates a 30° Beam Angle. The fixture offers a magnitude of static colours and colour mixing. Features built-in automated and sound-activated programs, strobe and electronic dimming for use on the fly, or create your own looks using the 8-channel DMX mode. The infra-red remote control simplifies operation and eliminates the bother of programming. Possibility of linking several units.
1x 30W COB LED
Full spectrum of light with COB technology
DMX and Stand-alone mode
3, 5 or 8 DMX channels
Master/slave function
Auto mode
Pre-programmed shows
DMX in/output via 3-pin XLR
IEC-connector input/output
Control panel with LED display
Double bracket also acts as floor stand
Product colour
Black
Light source
3-in-1 LED
Colours
Red, Green, Blue
LED power (single LED)
30W
Quantity of LEDs
1
Beam angle
30°
Field angle
77°
Illuminance
1.097 lx @ 1m
Flash rate per second
1 - 20Hz
DMX channels
3, 5, 8
DMX connection
3-pin XLR
Modes
Automatic programs, DMX, Manual, Master/Slave
IP rating
IP20
Cooling
Fan
Display
LED
Power plug
IEC
Power consumption
0.35 - 0.18A
Power supply
100-240VAC 50/60Hz
Dimensions (L x W x H)
170 x 220 x 200mm
Weight (kg)
1,10
Included accessories
Remote control (wireless), Mounting bracket, Power cable
