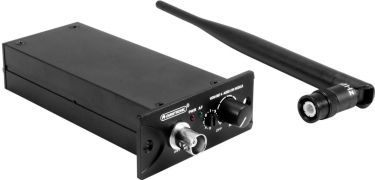

Omnitronic MOM-10BT4 Audio Link Module

10A18F47 | 13106972

789,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

Transmitter module for audio transmission to MOM-10BT4 PA systems

Sendemodul zur Audioübertragung an MOM-10BT4 PA-Systeme

For retrofitting the MOM-10BT4 modular PA system
For wireless audio transmission to receiving units of MOM-10BT4 PA systems (audio link mode)
1 audio link module can be retrofitted
Transmission of the master in mono or stereo R
16 selectable UHF frequencies (823-832 and 863-865 MHz)
Detachable BNC antenna
Operating range up to 30m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
1 x transmitter, 1 x antenna, 1 x user manual, 1 x declaration of conformity

Type:	Transmitter
Power supply:	12V DC 150 mA
Range:	Range up to 30m with line-of-sight
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency stability:	± 0.01 %
RF power output:	10 mW
Frequency selection:	16 switchable frequencies
Control elements:	Frequency selector switch, level control
Status LED:	Power, signal
Connections:	Output: antenna via 1 x BNC (F)
Dimensions:	Width: 7.1 cm Depth: 13.9 cm Height: 3 cm
Weight:	0.12 kg
