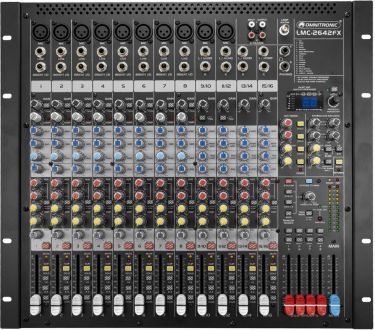

| | PRO audio mixer with British-style EQ, compressor, effect unit and USB interface Professionelles Audiomischpult mit British-style EQ, Kompressor, Effekteinheit und USB-Schnittstelle - 8 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
- 8 inserts for flexible connection of outboard equipment on each mono channel
- 4 stereo input channels with gain control, 4-way EQ, low cut and balance control
- State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
- Exceptional British EQs for warm and musical sound
- Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
- 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- Intelligent feedback detection system makes eliminating feedback frequencies easy
- 4 AUX sends per channel: 2 pre/post-fader switchable for flexible routing
- 4 subgroups with separate faders and outputs for added routing flexibility
- 4 stereo AUX returns with flexible routing
- 8 direct outputs for recordings
- Clip LEDs on all channels
- Routing switches for mute, main mix, subgroup and solo/PFL on all channels
- 2 separate main mix outputs with inserts
- 2 phones and control room outputs with multi-input source matrix
- CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
- Precise 12-digit LED level meter
- BNC lamp socket
- FX mute with remote control via footswitch
- +48 V phantom power, can be switched centrally
- Monochrome 2 digit 7-segment LED display
- The device can be connected via USB to the PC
- (19) 48.3 cm rack installation possible 10 U
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x uSB cable, 2 x angle
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 50 W | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >110 dB | | THD: | <0,05 % at 1 kHz | | DSP: | Digital signal processor 24 bit with 16 effects | | Phantom power: | 48 V DC | | Impedance: | Input: Microphone 2,6 kOhm , bal.
Input: line 10 kOhm , bal.
Input: 2-Track 10 kOhm
Input: AUX returns 10 kOhm , bal.
Insert: 10 kOhm , unbal. | | Gain: | Input: variable | | Crosstalk: | >89 dB | | Display type: | Monochrome 2 digit 7-segment LED display | | Control elements: | Encoder, power switch, phantom power switch | | Status LED: | Master level meter, clip, Gain reduction, Mute, phantom power; power | | Connections: | Lamp via 1 x BNC (F)
Input: Microphone via 10 x 3-pin XLR
Input: line via 16 x 6.3 mm jack socket (mono) mounting version
Input: 2-Track via 1 x stereo RCA
Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 2 x 6.3 mm jack socket (mono) mounting version
Output: sub groups via 8 x 6.3 mm jack socket (mono) mounting version
Output: Direct out via 8 x 6.3 mm jack socket (mono) mounting version
Output: AUX sends via 4 x 6.3 mm jack socket (mono) mounting version
Output: Foot control via 1 x 6.3 mm jack socket (stereo) mounting version
Output: control room via 2 x 6.3 mm jack socket (mono) mounting version
Output: AUX returns via 8 x 6.3-mm-jack (bal.)
Insert: Chanal via 8 x 6.3 mm jack socket (stereo) mounting version
Insert: master via 2 x 6.3 mm jack socket (stereo) mounting version | | Channels: | Input chanel: 8 x mono via XLR or jack, channel control via 60mm fader, 3-band EQ-Poti with semiparametric mid-band EQ ±15dB at 80Hz/100-8kHz/12kHz, 4 Send/AUX, pre-post switch, adjustable single-knob compressor, Mute control, Routing Sub group bus switch, Routing master bus switch, low cut switch, gain control, panoramacontol, solo switch
Input chanel: 2 x stereo via XLR or jack, channel control via 60mm fader, 4-band EQ-poti EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, low cut switch, Routing Sub group bus switch, Routing master bus switch, balancecontrol, Mute control, solo switch,
Input chanel: 2 x stereo via Jack, channel control via 60mm fader, 4-band EQ-poti EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 4 Send/AUX, pre-post switch, gain control, Routing Sub group bus switch, Routing master bus switch, balancecontrol, Mute control, solo switch,
Master output: 1 x stereo, channel control via 60mm fader | | Crossover frequency: | High-pass 75 Hz, 18db/oct | | Max. level: | Output: master +28 dBu, bal.
Output: sub groups +22 dBu, unbal.
Output: control room +22 dBu, unbal.
Output: Direct out +22 dBu, unbal.
Output: rec. +22 dBu
Output: headphones +19 dBu, unbal.
Output: AUX sends +22 dBu, unbal. | | USB port: | Typ B | | PC connect: | Via USB | | Housing design: | (19") 48.3 cm rack installation possible 10 U | | Dimensions: | Width: 48,3 cm
Depth: 45 cm
Height: 14 cm | | Weight: | 7,20 kg |

| | | | |
