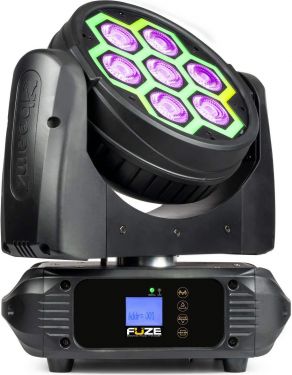

The Fuze series consists of a series of compact moving heads equipped with a powerful LED light source that guarantees impressive colour washes and stunning visual effects. Exact positioning is possible through 16-bit movement resolution (540-degree pan and 180-degree tilt). These fixtures are designed in a compact housing and are ideal for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical. It can be controlled by DMX, with sound activation or used in standalone mode with the Master/Slave function.
Compact moving head wash SMD LED effect
7x 12W 4-in-1 LEDs
RGBW Colour mix (red, green, blue and white)
60x SMD RGB LEDs for Neon light effect
Linear colour temperature 2800K-8000K
Full LED controllable
23 or 28 DMX channels
DMX, Auto, Sound and Static colour mode
Master/slave synchronization
0-100% Electronic Dimmer
Wide pan and tilt range with smooth movement
Reset function
Control panel with TFT LCD display
DMX in/output via 3-pin XLR
Quick release omega style brackets included
Powerconnector cable, DMX cable and safety cord included
Colour temperature
2700K - 8000K
Light source
4-in-1 LED
Colours
Red, Green, Blue, White
LED power (single LED)
12W
Quantity of LEDs
7
Beam angle
23°
Field angle
40°
Illuminance
7.031 lx @ 1m
Head movement: Pan
540
Head movement: Tilt
180
Flash rate per second
1 - 21Hz
Modes
Automatic programs, DMX, Manual, Master/Slave
Sound to light mode
Yes
DMX channels
23, 28
DMX connection
3-pin XLR
Display
LCD
IP rating
IP20
Cooling
Temperature controlled fan
Power plug
P-Con
Power consumption
0.72 - 0.34A
Power supply
100-240VAC 50/60Hz
Dimensions (L x W x H)
270 x 310 x 360mm
Weight (kg)
5,40
Included accessories
Mounting bracket, Safety cord, Power cable, DMX cable
